Glove Box Housing

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the center air vent duct assembly.

    (Refer to Crash Pad - "CRASH PAD AIR VENT ")

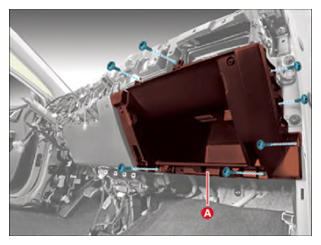

  3. Remove the glove box housing (A) after removing the screws.
    G14861090Courtesy of KIA MOTORS AMERICA, INC.

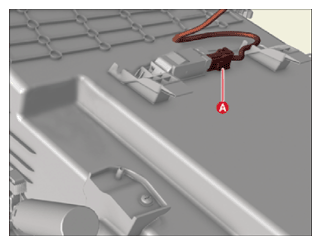

  4. Disconnect the glove box lamp connector (A).
G14861091Courtesy of KIA MOTORS AMERICA, INC.
