Removal & Installation: Removal
CAUTION:
Wear gloves to protect hands from injury.
NOTE:
When removing the parts, wrap protective tape around the tool to prevent damage to trims and panels.

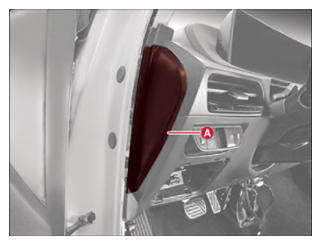

- Remove the crash pad side cover (A) by using the remover.
[LH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

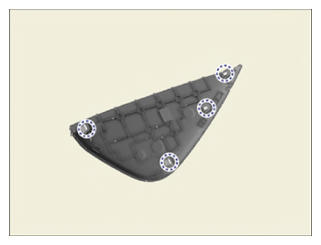

Clip mounting position:

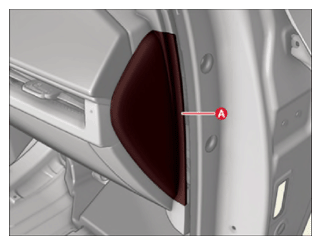

[RH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Information

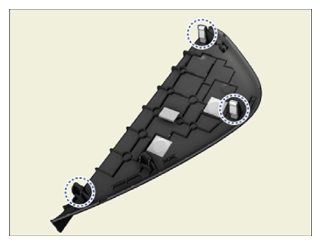

Clip mounting position:
