Crash Pad Upper Panel

1. Remove the cluster.

   (Refer to Body Electrical System - "CLUSTER ")

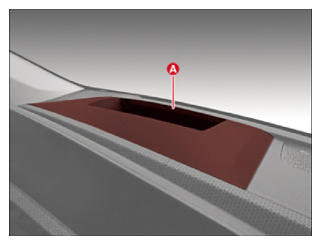

2. Remove the head up display cover (A) after removing the screw.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

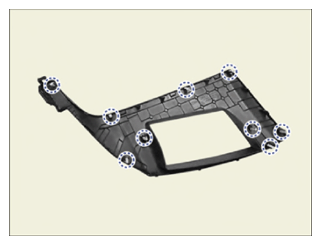

   Clip mounting position:

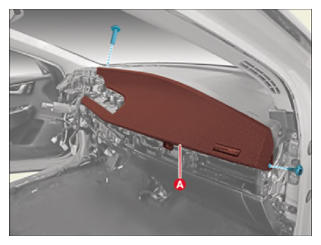

3. Remove the crash pad upper panel (A) after removing the screws.

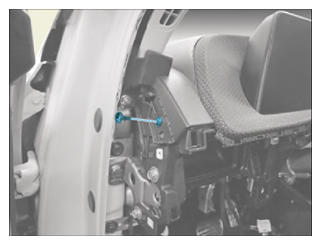

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

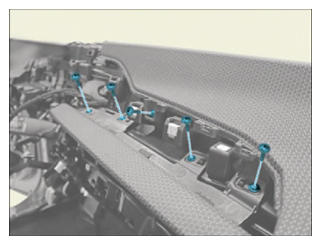

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
