Crash Pad Center Panel

  1. Remove the crash pad lower panel.
  2. Remove the glove box housing.

    (Refer to Crash Pad - "GLOVE BOX ")

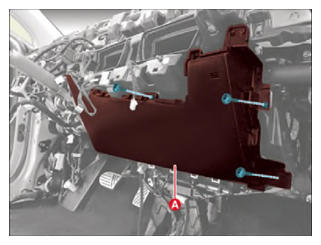

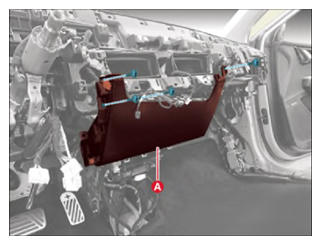

  3. Remove the crash pad center panel (A) after removing the screws.
G14861065Courtesy of KIA MOTORS AMERICA, INC.
G14861066Courtesy of KIA MOTORS AMERICA, INC.
