Crash Pad Center Garnish

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD

(Refer to REMOVAL & INSTALLATION - 4WD
Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD PANEL ")

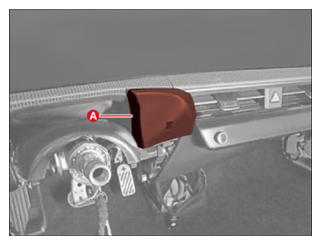

Remove the crash pad center garnish (A) by using the remover.

Courtesy of KIA MOTORS AMERICA, INC.

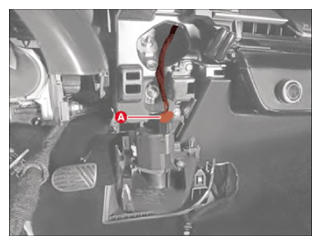

Disconnect the in-car sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
