Crash Pad Center Air Vent Duct

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD

(Refer to REMOVAL & INSTALLATION - 4WD
Remove the Audio/AVNT keyboard.
(Refer to AUDIO-AVNT KEYBOARD

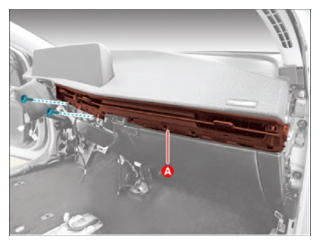

Remove the center air vent duct (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

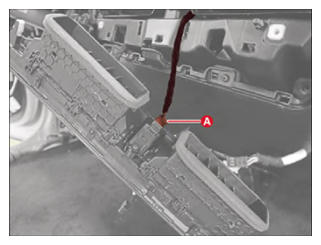

Disconnect the hazard switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
