Crash Pad Air Vent Duct [LH]

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD

(Refer to REMOVAL & INSTALLATION - 4WD
Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD PANEL ")

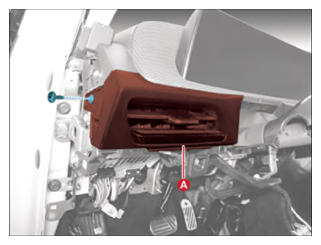

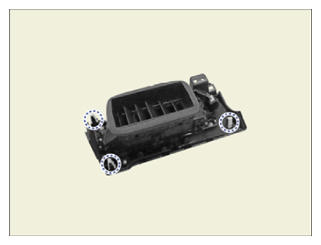

Remove the air vent duct [LH] (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

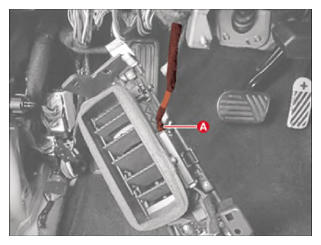

Disconnect the mood lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
