Removal & Installation: Removal
NOTE:
- Be careful not to damage trim and panel.
- When removing it with a remover, wrap a protective tape around it to prevent damage to the parts.
- Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD
(Refer to REMOVAL & INSTALLATION - 4WD
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

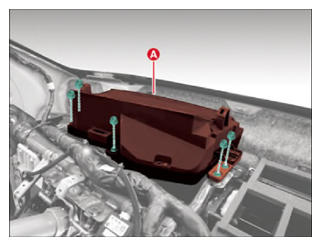

- Remove the augmented reality head up display (AR HUD) unit (A) after removing the nuts.

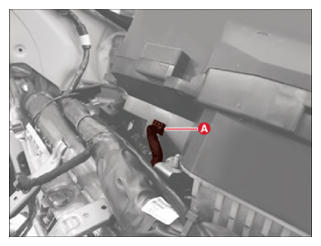

- Disconnect the AR HUD unit connector (A).
