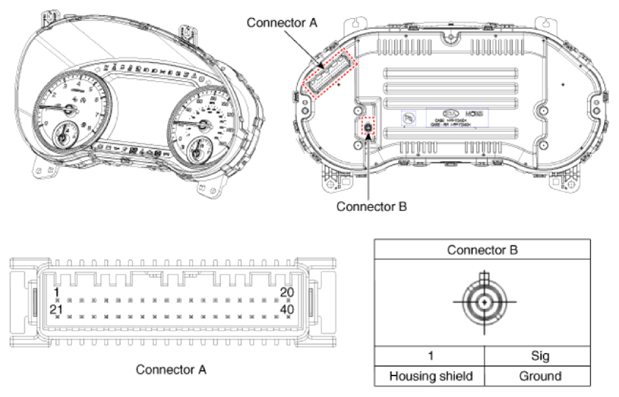

| 1 |
Signal 3 (Ground) |
| 2 |
Illumination (-) |
| 3 |
Rheostat switch (Down) (Input) |
| 4 |
Rheostat switch (Up) (Input) |
| 5 |
Detent |
| 6 |
AT ('P' Position) |
| 7 |
AT ('R' Position) |
| 8 |
AT ('N' Position) |
| 9 |
AT ('D' Position) |
| 10 |
AT ('S' Position) |
| 11 |
Immobilizer (Input) |
| 12 |
Vehicle speed (Output) |
| 13 |
Alternator (Input) |
| 14 |
Fuel sender (+) (Input) |
| 15 |
Super vision: Vehicle speed (Input) |
| 16 |
Fuel sender (-) (Input) |
| 17 |
Water separator (Input) |
| 18 |
Air bag (+) (Input) |
| 19 |
Oil pressure switch (Input) |
| 20 |
Tail lamp (Input) |
| 21 |
Trip switch (-) (Input) |
| 22 |
Trip switch 1 (+) (Input) |
| 23 |
Trip switch 2 (+) (Input) |
| 24 |
Drive mode (Clockwise) |
| 25 |
Drive mode (Counterclockwise) |
| 26 |
Speaker 1 (+) |
| 27 |
Speaker 1 (-) |
| 28 |
Low washer level (input) |
| 29 |
MM-CAN (LOW) |
| 30 |
MM-CAN (High) |
| 31 |
Engine run state (Output) |
| 32 |
C-CAN (High) |
| 33 |
C-CAN (Low) |
| 34 |
Outside temperature (Input) |
| 35 |
- |
| 36 |
Heated wheel indicator (Input) |
| 37 |
Signal 1 (Ground) |
| 38 |
LCD Power (Input) |
| 39 |
IGN1 |
| 40 |
Battery (+) |
