[Instrument Cluster]

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

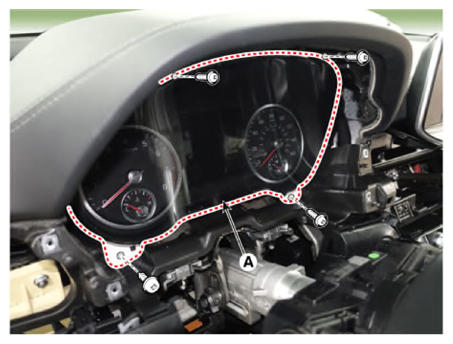

  3. Remove the instrument cluster (A) after loosening the mounting screws.
    G13312121Courtesy of KIA MOTORS AMERICA, INC.

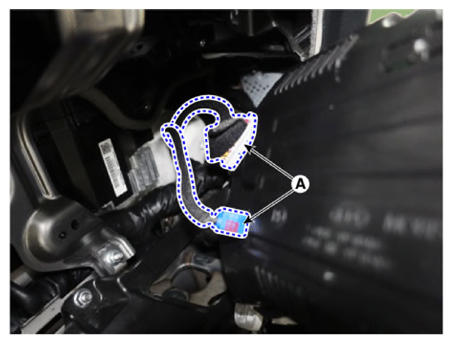

  4. Disconnect the connectors (A) from the instrument cluster.
G13312122Courtesy of KIA MOTORS AMERICA, INC.
