[Cluster Speaker]

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

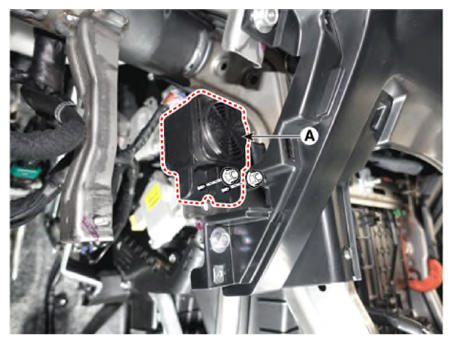

  3. Remove the cluster speaker (A) after loosening the mounting nuts.
    G13312123Courtesy of KIA MOTORS AMERICA, INC.

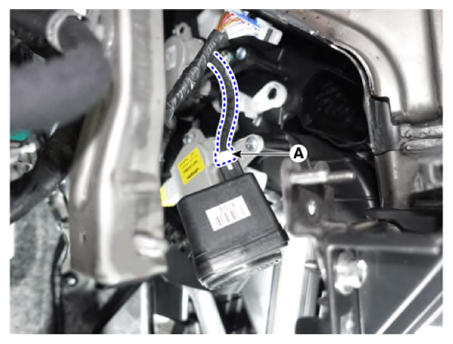

  4. Disconnect the connector (A) from the cluster speaker.
G13312124Courtesy of KIA MOTORS AMERICA, INC.
