Repair Procedures: Installation

  1. Install in the reverse of the removal.
  2. After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

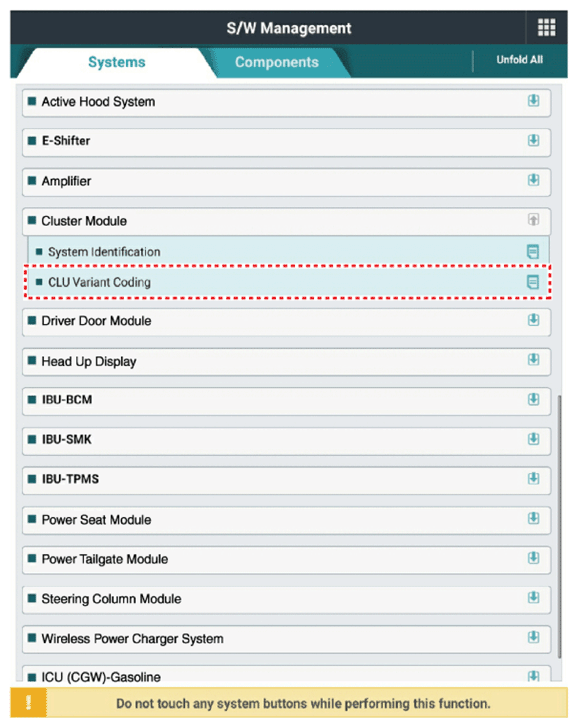

G13312125Courtesy of KIA MOTORS AMERICA, INC.

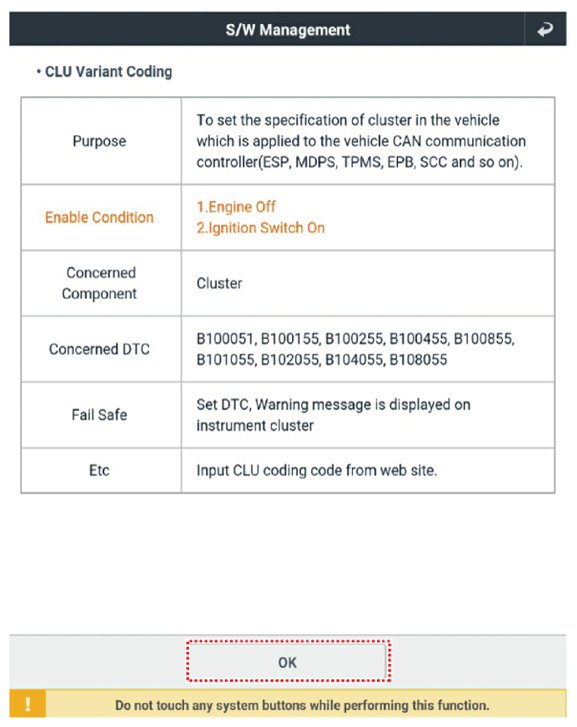

G13312126Courtesy of KIA MOTORS AMERICA, INC.

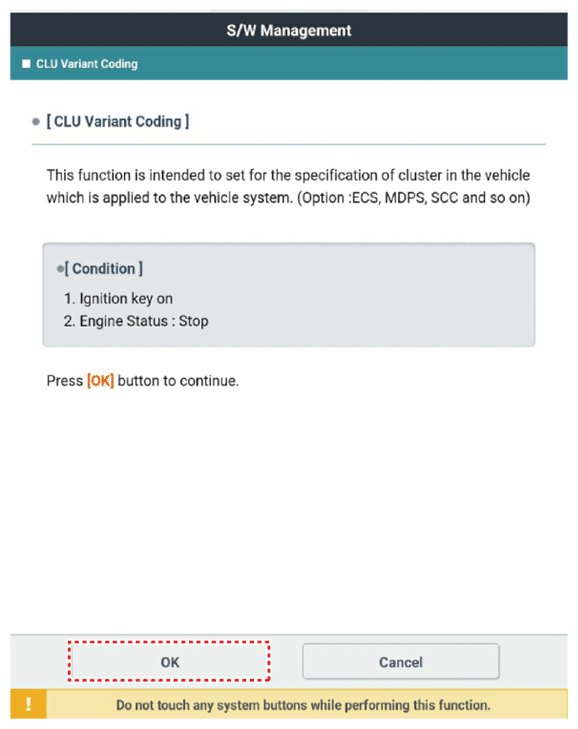

G13312127Courtesy of KIA MOTORS AMERICA, INC.
