[Steering column shroud upper panel]

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

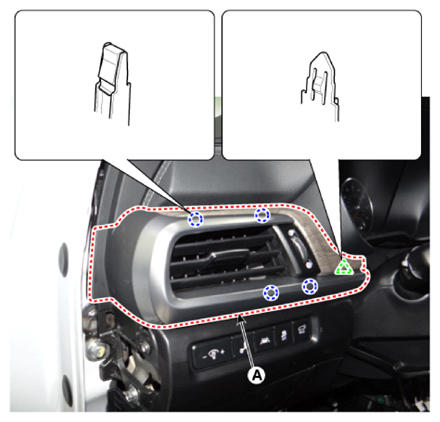

1. Using a screwdriver or remover, remove the side air vent duct assembly (A).

   Courtesy of KIA MOTORS AMERICA, INC.

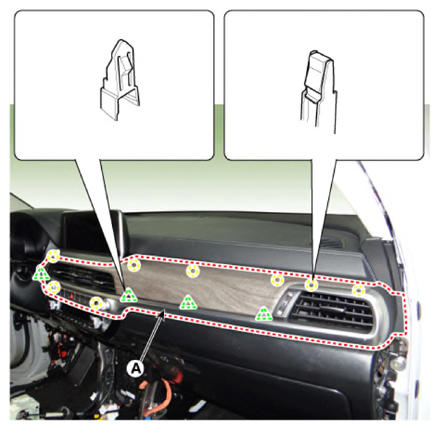

2. Using a screwdriver or remover, remove the crash pad center garnish (A).

   Courtesy of KIA MOTORS AMERICA, INC.

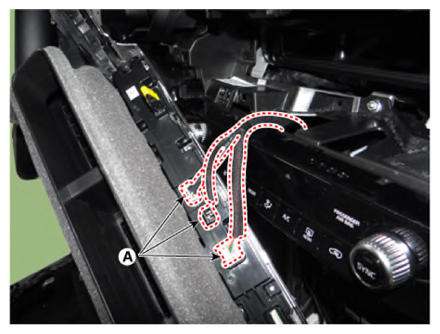

3. Disconnect the connectors (A).

   Courtesy of KIA MOTORS AMERICA, INC.

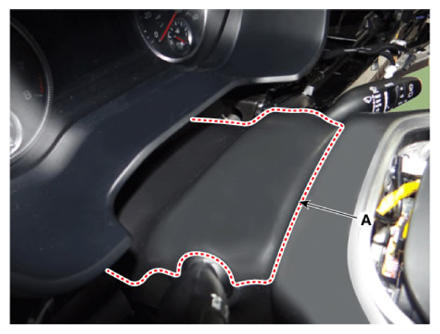

4. Using a screwdriver or remover, remove the steering column shroud upper panel (A).

   Courtesy of KIA MOTORS AMERICA, INC.

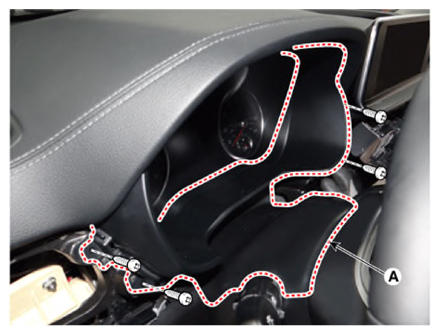

5. Loosen the mounting screws, remove the cluster fascia panel (A).

   Courtesy of KIA MOTORS AMERICA, INC.

6. To install, reverse the removal procedure.

   Information

   Replace any damaged clips (or pin-type retainers).
