[Steering column shroud lower panel]

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

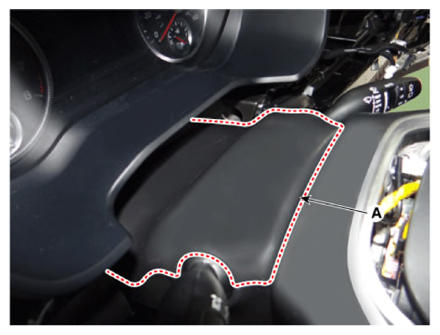

Using a remover, slightly separate the steering column shroud upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

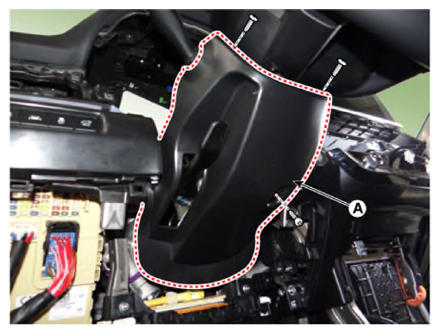

Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
