Center Muffler

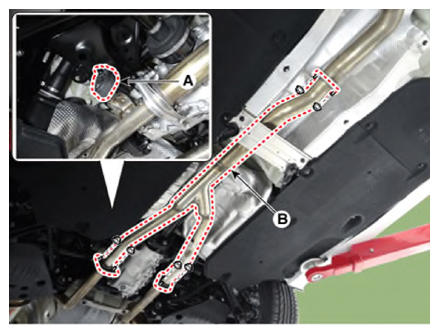

  1. Detach the rubber hanger (A) from the center muffler.
  2. Remove the center muffler (B).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

    G13423028Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing, replace with new gaskets.
  3. Install in the reverse order of removal.
