Intercooler outlet Hose & Pipe

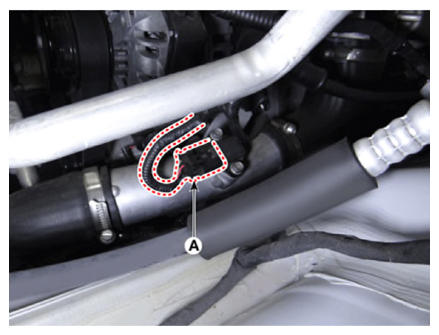

Disconnect the booster pressure sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

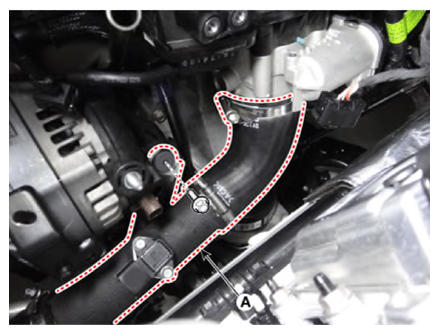

Remove the intercooler outlet hose & pipe assembly (A).
Tightening torque

Hose clamp:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Bolt:

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room front under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

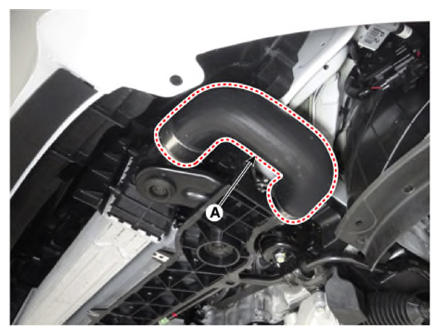

Remove the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

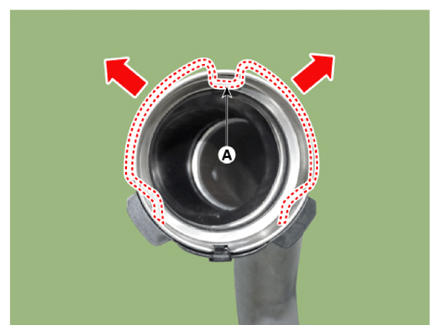

When disconnect the intercooler inlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

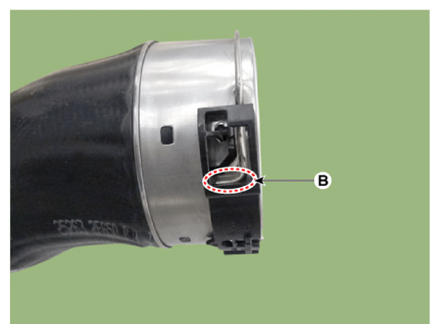

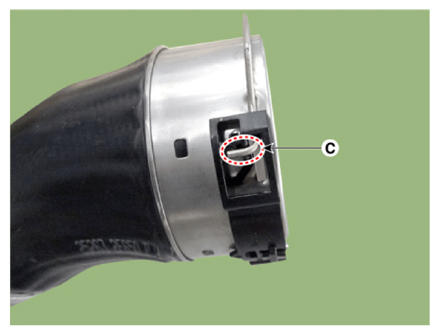

Move the quick connector clamp from position (B) to position (C) as shown below and pull out the quick connector hose.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
