Intercooler Inlet Hose & Pipe

Remove the air intake hose.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

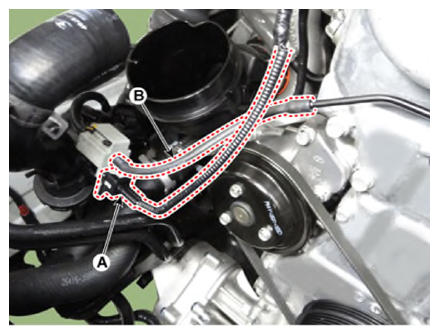

Disconnect the recirculation valve connector (A) and the vacuum hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

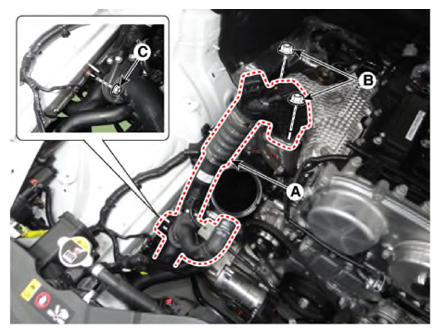

Remove the intercooler inlet hose & pipe assembly (A).
Tightening torque

Nuts (B):

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb.ft)

Nut (C):

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room front under cover
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

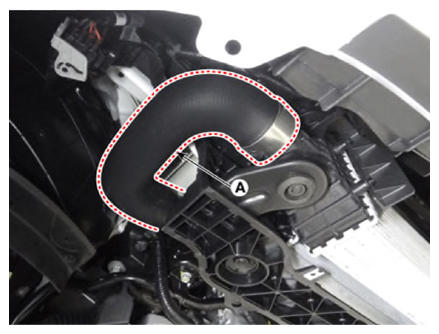

Remove the intercooler inlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

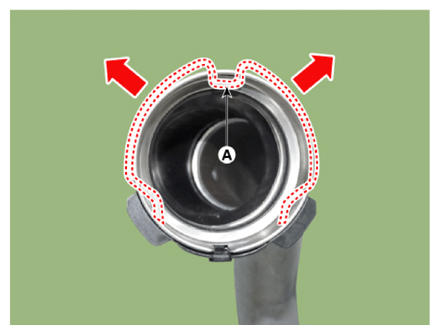

When disconnect the intercooler inlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

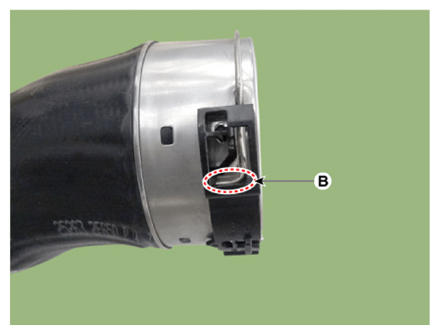

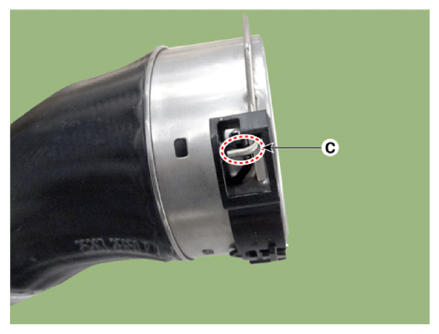

Move the quick connector clamp from position (B) to position (C) as shown below and pull out the quick connector hose.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
