Air Cleaner Element

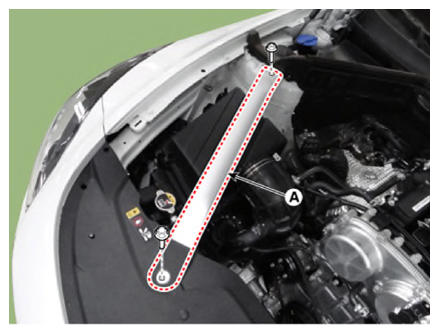

  1. Remove the RH front strut bar (A).

    Tightening torque:

    41.2 - 61.8 N.m (4.2 - 6.3 kgf.m 30.4 - 45.6 lbf.ft)

    G13422956Courtesy of KIA MOTORS AMERICA, INC.

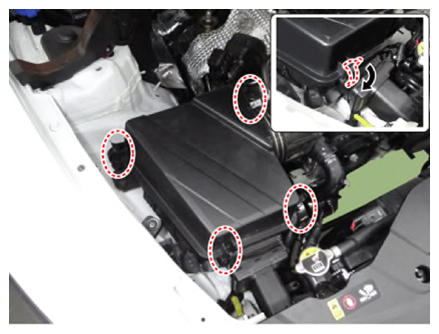

  2. Open the air cleaner element cover by unlocking the clamp.
    G13422957Courtesy of KIA MOTORS AMERICA, INC.

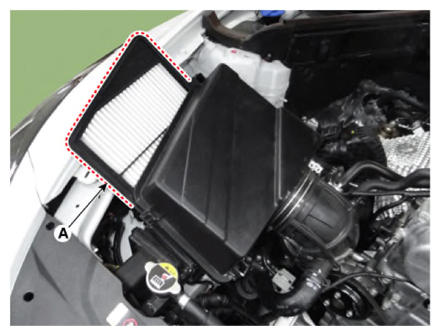

  3. Replace the air cleaner element (A) with a new one.
    G13422958Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
  4. Close the air cleaner cover by hooking the clamps.
