Instrument Cluster Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

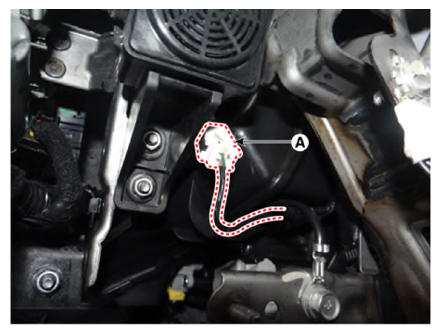

  3. Disconnect the instrument cluster speaker connector (A).
    G13426457Courtesy of KIA MOTORS AMERICA, INC.

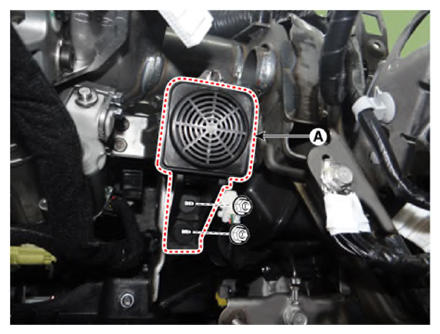

  4. Remove the instrument cluster speaker (A) after loosening the mounting nuts.
    G13426458Courtesy of KIA MOTORS AMERICA, INC.
