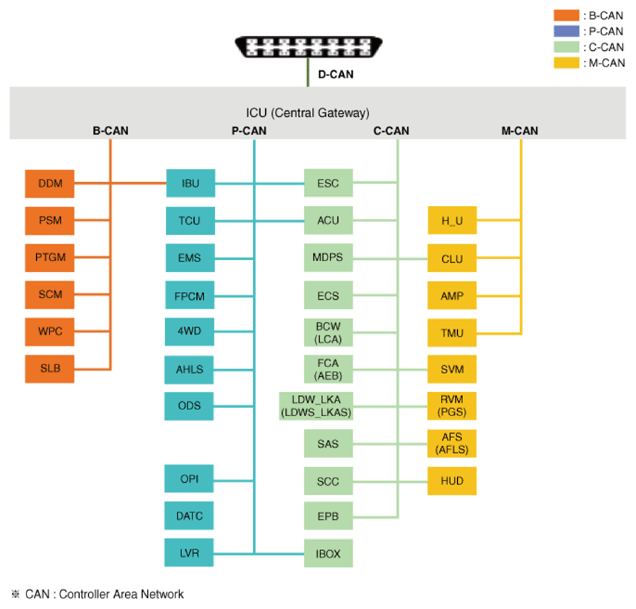

Communication Network Diagram

G13426454Courtesy of KIA MOTORS AMERICA, INC.
Abbreviation Explanation
ACU Airbag Control Unit
AFL Adaptive Front-Lighting System
AMP Amplifier
AUDIO Audio Head Unit
SVM Surround View Monitor
B_CAN Body Controller Area Network
BCW Blind-Spot Collision Warning
C_CAN Chassis Controller Area Network
CDP Compact Disk Player
CLU Cluster Module
DATC Dual Automatic Temp Control
DDM Driver Door Module
ECM Engine Control Module
F_PUMP Fuel Pump Control Module
HUD Head Up Display
IBU Integrated Body Control Unit
ICU Integrated Central Control Unit
IFB Interface Box
IMS Integrated Memory System
LDW Lane Departure Warning
LKA Land Keeping Assist
M_CAN Multi media Controller Area Network
MDPS Motor Driven Power Steering
MFC Multi Function Camera
MTC Manual Temp Control
ODS Occupant Detection System
P_CAN Powertrain Controller Area Network
PCM Powertrain control module
PTG Power Liftgate Module
RVM Rear View Monitor
SCC Smart Cruise Control
SCM Steering Column Module
TCM Transmission Control Module
VDC Vehicle Dynamic Control
WPC Wireless Power Charger
