System Inspection

Inspection Condition	Inspection Procedure	Reference
Ignition "ON"	Connect KDS to Data Link Connector (DLC). Select "Vehicle S/W Management" with KDS. Select "HUD Calibration" with KDS. Go to "VERIFICATION OF REPAIR " procedure after image calibration.	Fig.1 to 23

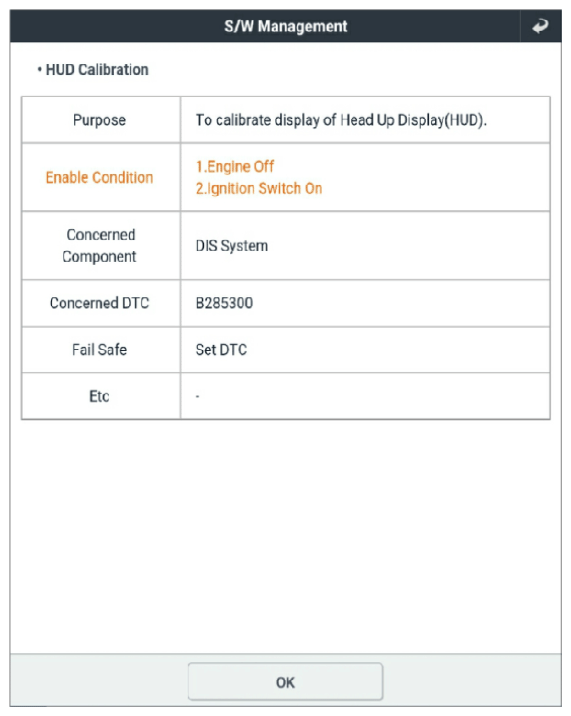

G13422420

Courtesy of KIA MOTORS AMERICA, INC.

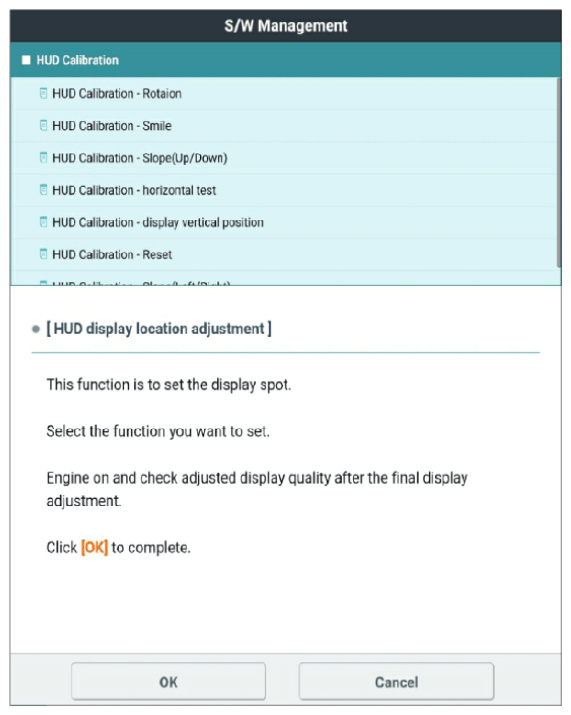

G13422421

Courtesy of KIA MOTORS AMERICA, INC.

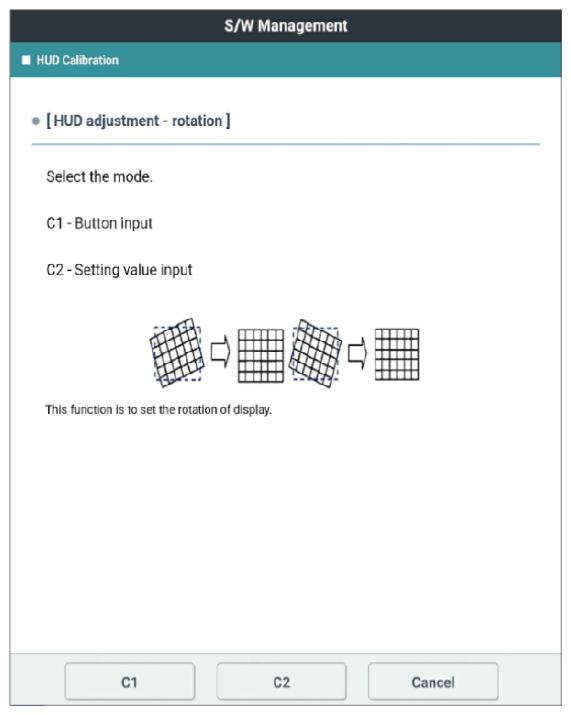

G13422422

Courtesy of KIA MOTORS AMERICA, INC.

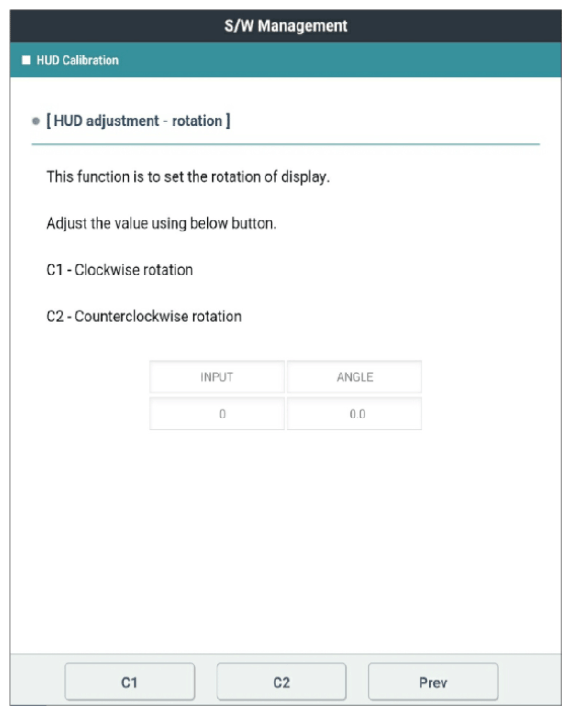

G13422423

Courtesy of KIA MOTORS AMERICA, INC.

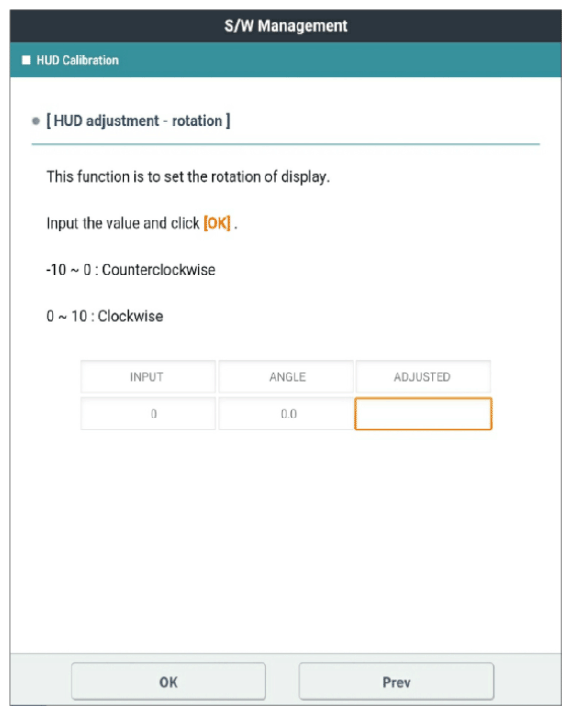

G13422424

Courtesy of KIA MOTORS AMERICA, INC.

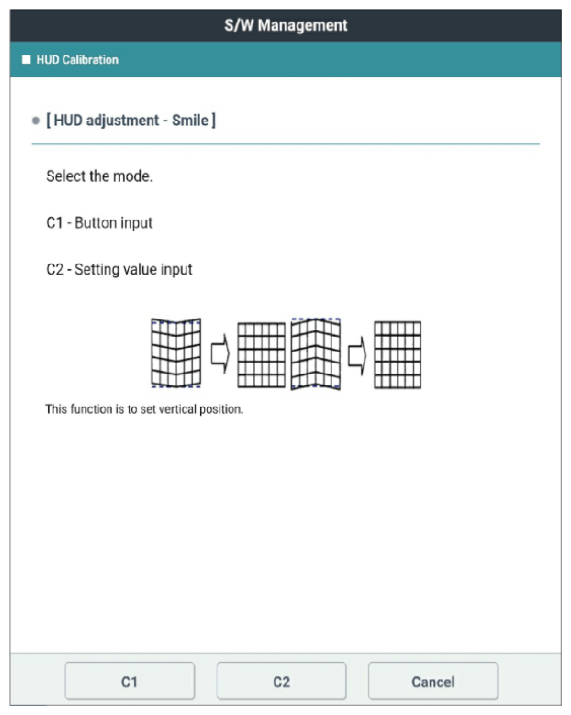

G13422425

Courtesy of KIA MOTORS AMERICA, INC.

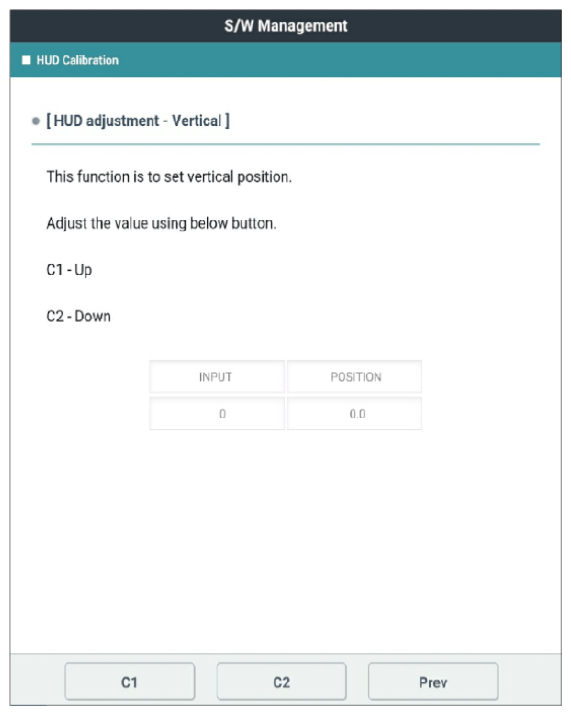

G13422426

Courtesy of KIA MOTORS AMERICA, INC.

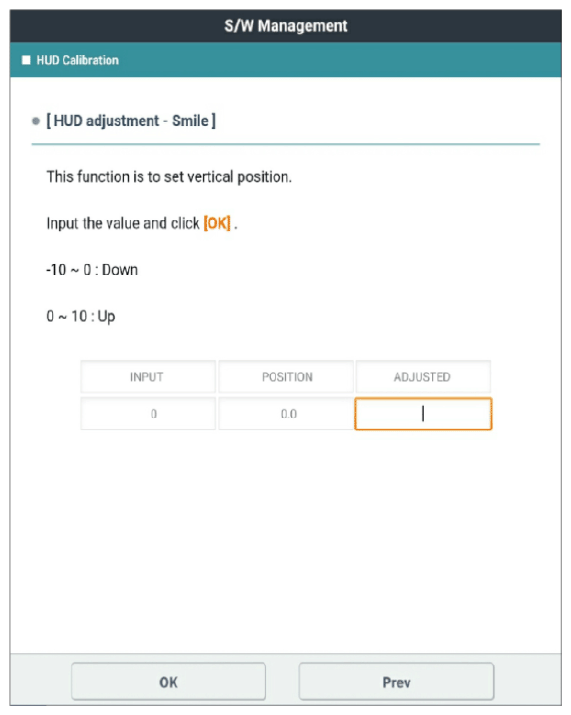

G13422427

Courtesy of KIA MOTORS AMERICA, INC.

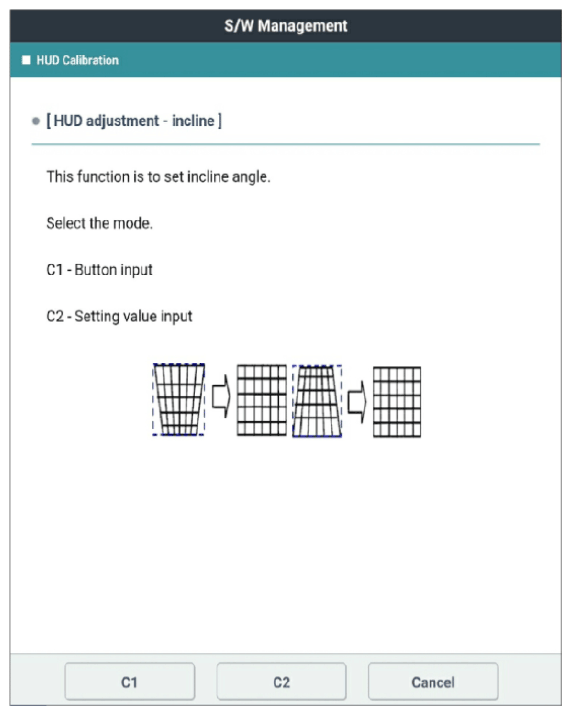

G13422428

Courtesy of KIA MOTORS AMERICA, INC.

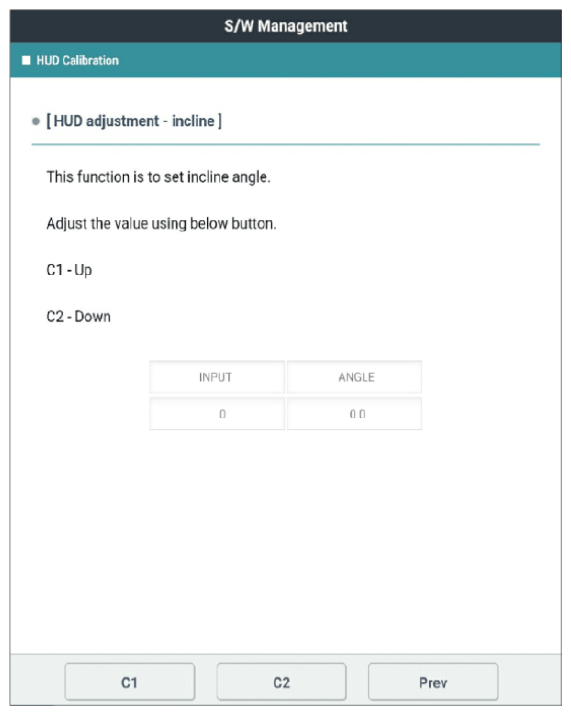

G13422429

Courtesy of KIA MOTORS AMERICA, INC.

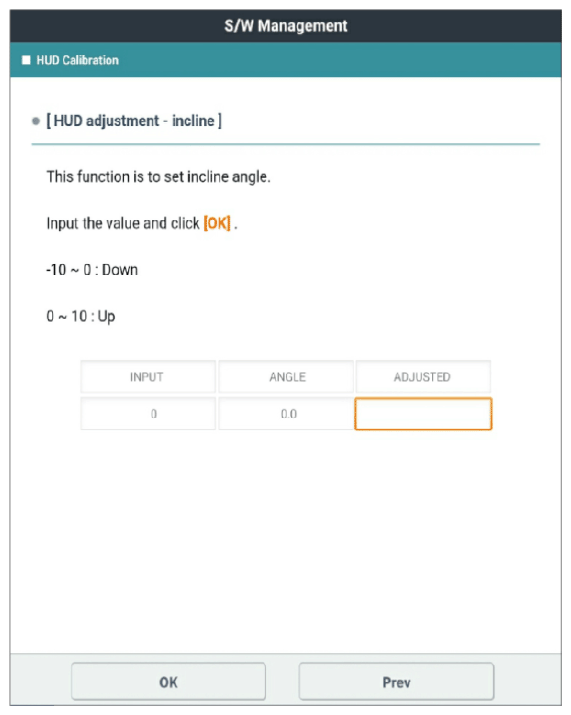

G13422430

Courtesy of KIA MOTORS AMERICA, INC.

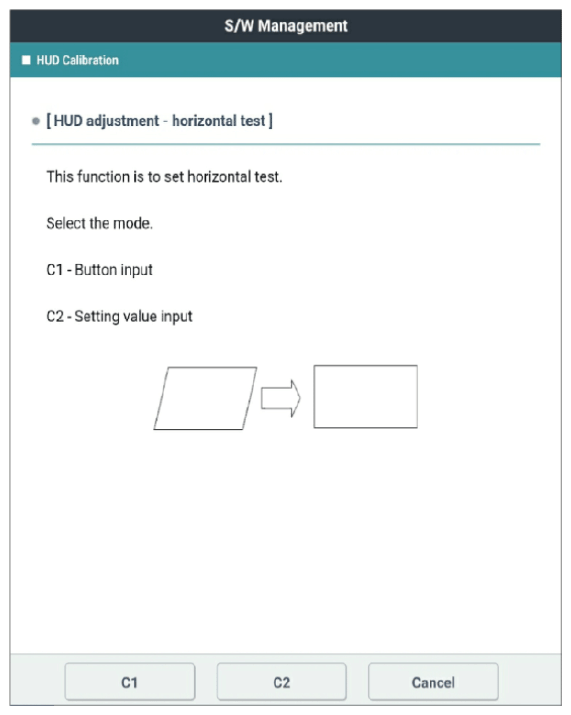

G13422431

Courtesy of KIA MOTORS AMERICA, INC.

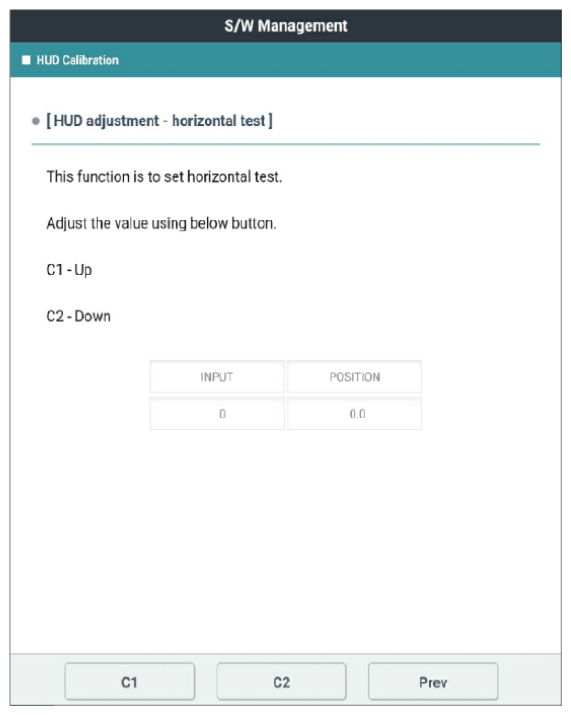

G13422432

Courtesy of KIA MOTORS AMERICA, INC.

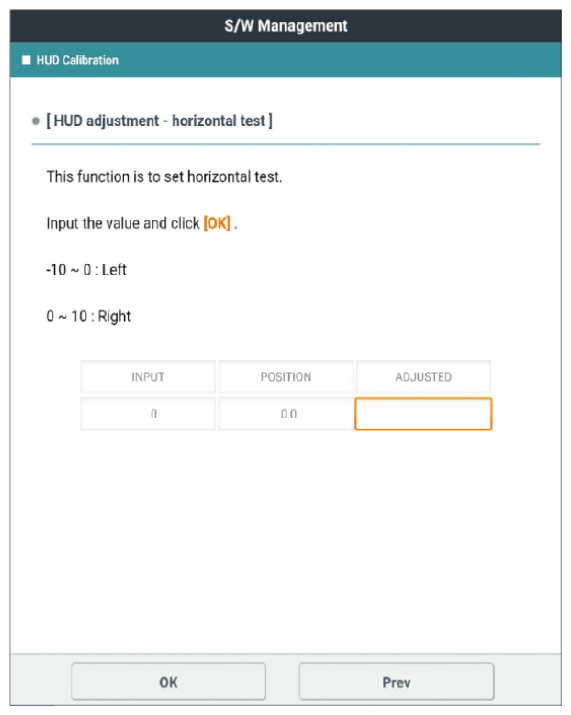

G13422433

Courtesy of KIA MOTORS AMERICA, INC.

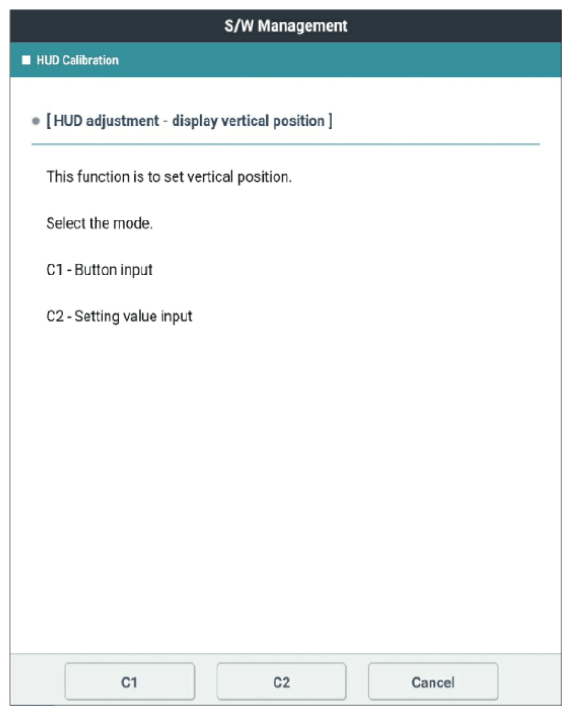

G13422434

Courtesy of KIA MOTORS AMERICA, INC.

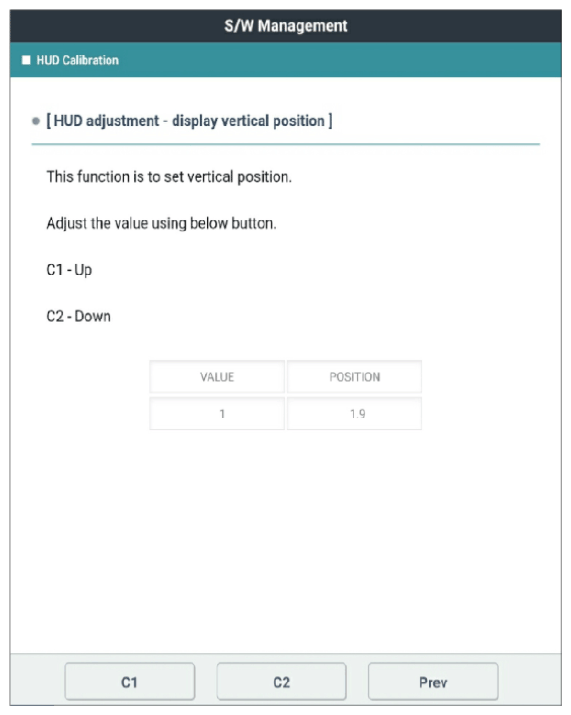

G13422435

Courtesy of KIA MOTORS AMERICA, INC.

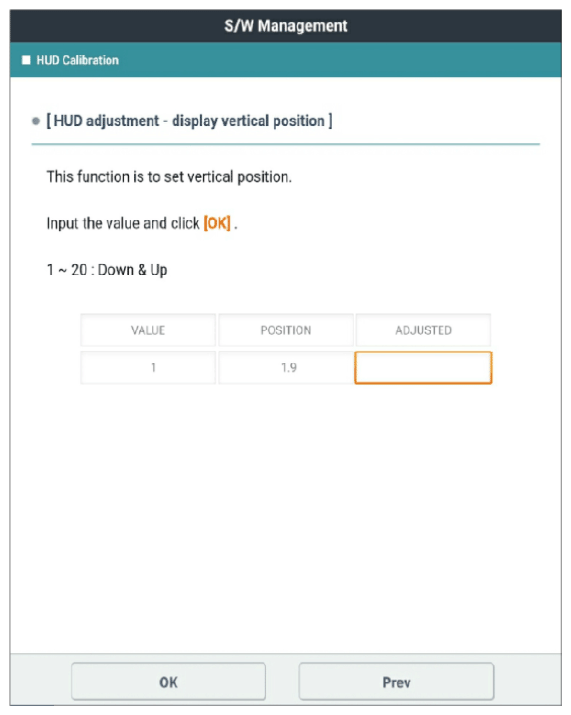

G13422436

Courtesy of KIA MOTORS AMERICA, INC.

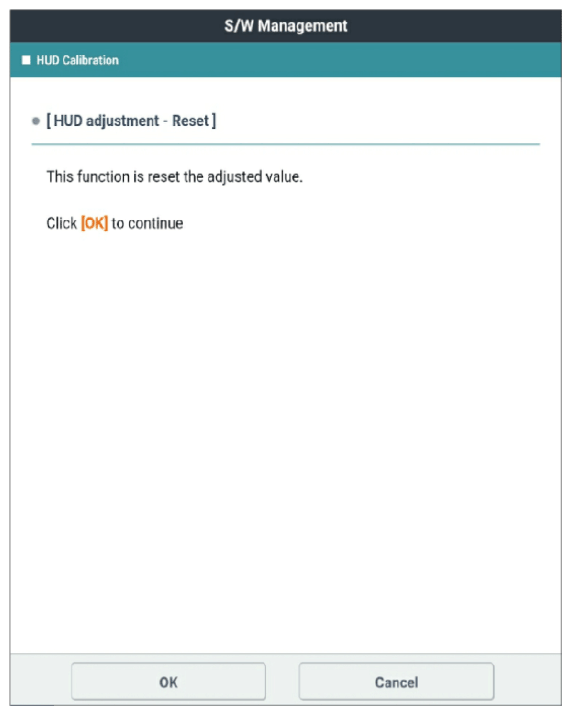

G13422437

Courtesy of KIA MOTORS AMERICA, INC.

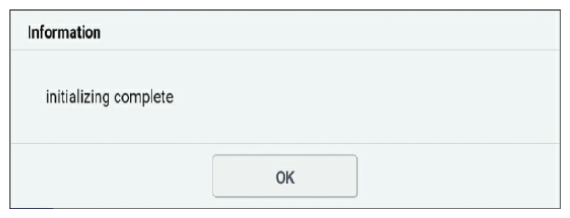

G13422438

Courtesy of KIA MOTORS AMERICA, INC.

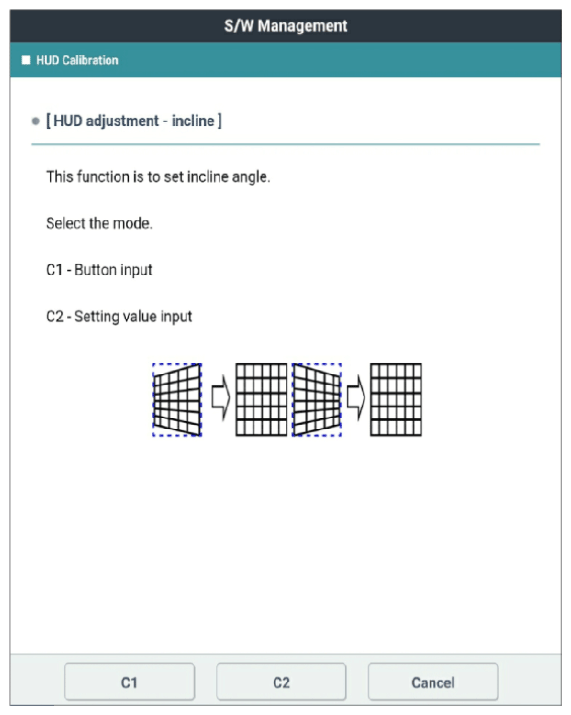

G13422439

Courtesy of KIA MOTORS AMERICA, INC.

G13422440

Courtesy of KIA MOTORS AMERICA, INC.

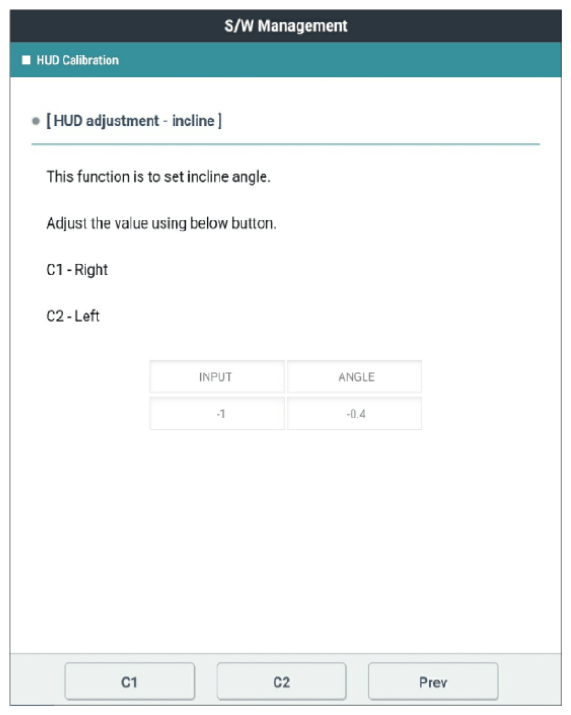

G13422441

Courtesy of KIA MOTORS AMERICA, INC.

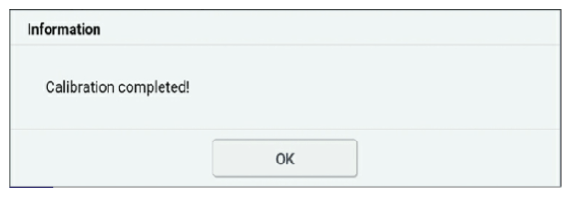

G13422442

Courtesy of KIA MOTORS AMERICA, INC.

Good

Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Perform the procedure again.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
