RH Turbo Manifold Module

Remove the engine and transmission assembly.
(Refer to Engine and Transmission Assembly - "ENGINE & TRANSMISSION ASSEMBLY ")

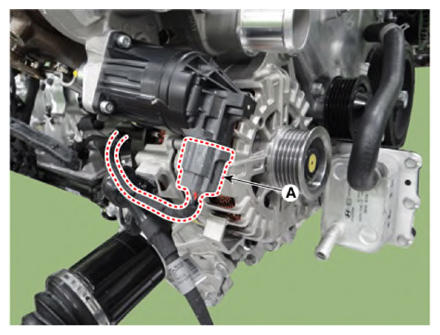

Disconnect the RH electric waste gate actuator (EWGA) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

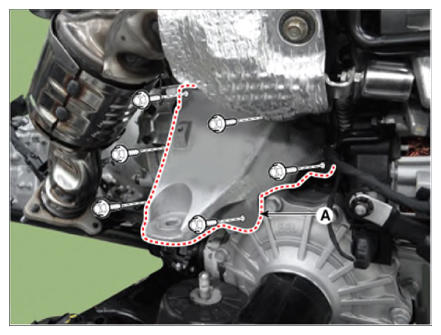

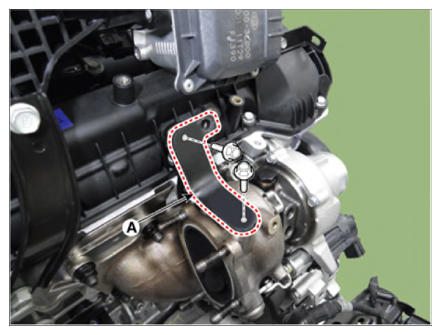

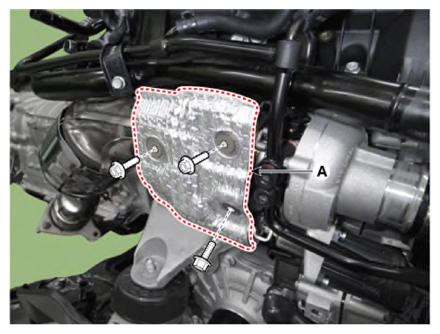

Remove the RH turbo manifold module heat protector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

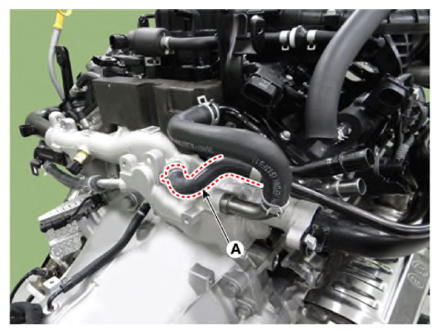

Disconnect the RH turbocharger water hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

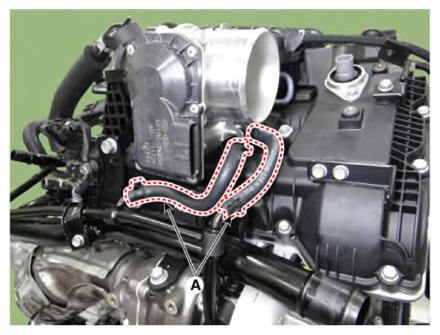

Disconnect the electric throttle control (ETC) module water hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the oil cooler water hose B (A).

Courtesy of KIA MOTORS AMERICA, INC.

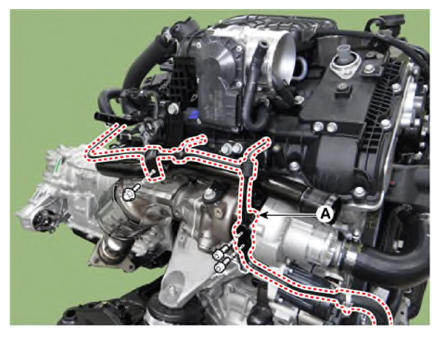

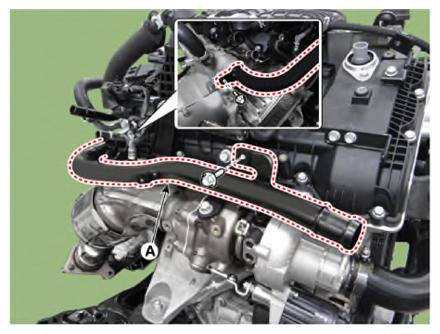

Remove the RH turbocharger water hose & pipe (A)
Tightening torque

Eye bolts:

33.3 - 39.2 N.m (3.4 - 4.0 kgf.m, 26.6 - 28.9 lb.ft)

Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the water inlet pipe (A).
Tightening torque:

24.5 - 28.4 N.m (2.5 - 2.9 kgf.m, 18.1 - 21.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

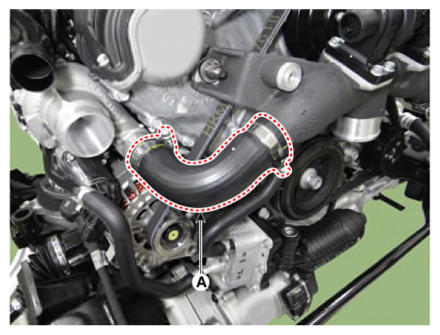

Disconnect the RH intercooler inlet hose (A).
Tightening torque:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft, 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the RH warm-up catalytic converter (WCC) stay (A).
Tightening torque:

34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the heated oxygen sensor (HO2S).
(Refer to Engine control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

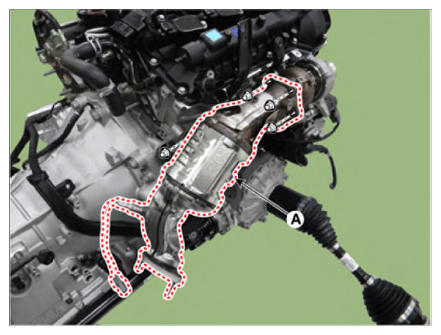

Remove the RH warm-up catalytic converter (WCC) (A).
Tightening torque:

35.3 - 41.2 N.m (3.6 - 4.2 kgf.m, 26.0 - 30.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the RH warm-up catalytic converter (WCC) gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

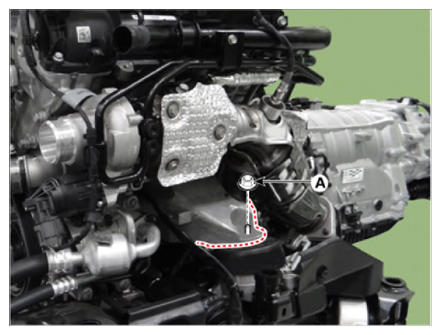

Remove the LH/RH engine mounting insulator nut (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 Ib.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Hook the engine hoist to the hole of engine hanger.
Lift the engine slightly using the hoist to obtain space for removing the RH engine mounting support bracket.

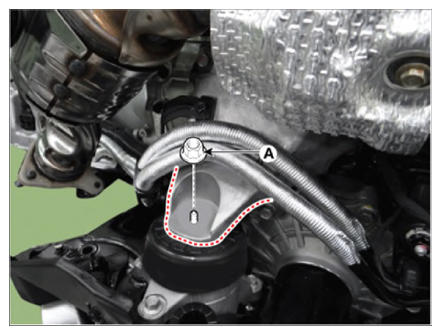

Remove the engine mounting support bracket (A).
Tightening torque:

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

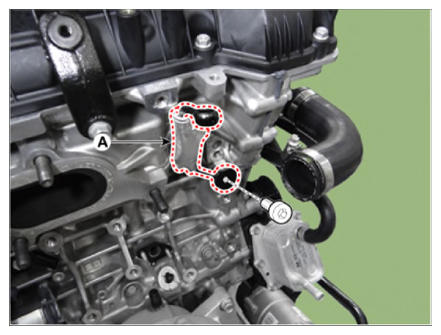

Remove the RH turbocharger oil drain pipe mounting nuts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

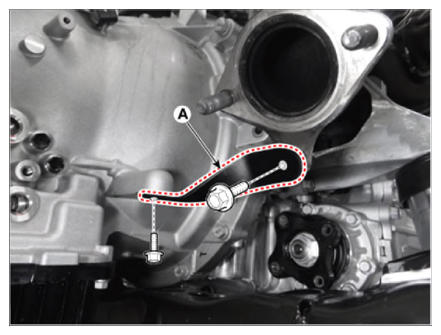

Remove the RH turbo manifold module stay (A).
Tightening torque:

26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

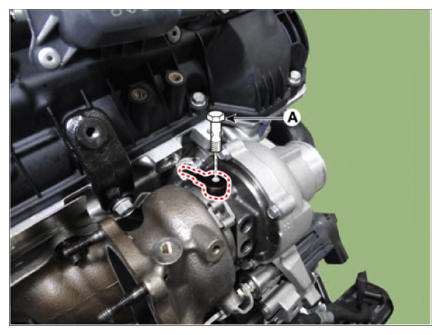

Remove the RH turbocharger oil feed pipe eye bolt (A).
Tightening torque:

11.8 - 17.7 N.m (1.2 - 1.8 kgf.m, 8.7 - 13.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

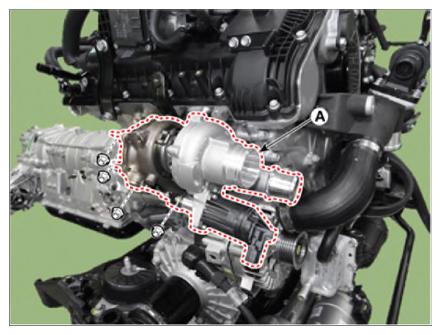

Remove the RH turbo manifold module (A).
Tightening torque:

58.8 - 63.7 N.m (6.0 - 6.5 kgf.m, 43.4 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

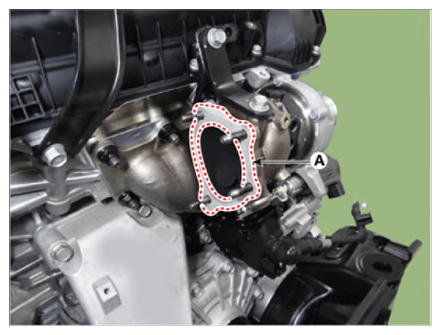

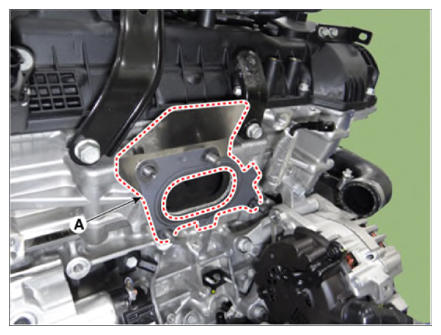

Remove the RH turbo manifold module gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

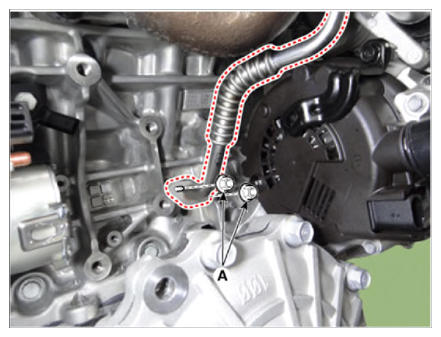

Remove the RH turbocharger oil drain pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")

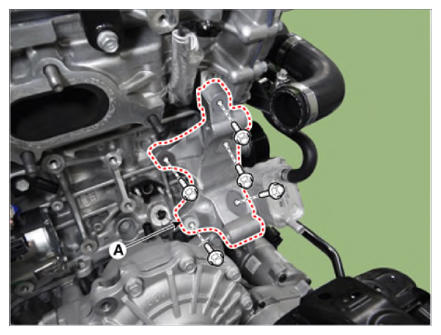

Remove the alternator bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the RH turbocharger oil feed pipe (A).
Tightening torque:

66.7 - 70.6 N.m (6.8 - 7.2 kgf.m, 49.2 - 52.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Always use a new RH turbo manifold module gasket.
- Take care whether the oil feed pipe & hose assembly is interfered with turbo manifold module and any surrounding parts.
- If the oil feed pipe & hose is damaged, engine oil is not supplied sufficiently to the turbocharger then it may damage the turbocharger. If the oil drain pipe & hose is damaged and clogged, engine oil is not drained smoothly then it may cause oil leaks from the turbocharger. Be care full the oil feed pipe & hose not to damage. (bent, crushed, torn or cracked).
- When installing the RH turbo manifold module, tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.

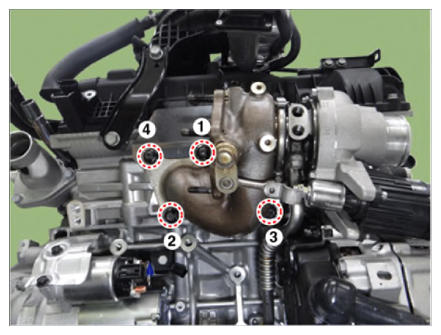

  Fig 1: RH Exhaust Manifold Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
- When installing the RH warm-up catalytic converter (WCC), tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.

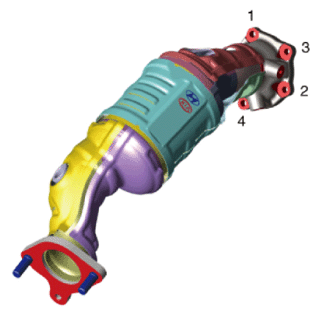

  Fig 2: RH Warm-Up Catalytic Converter Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
