LH Turbo Manifold Module

Remove the engine and transmission assembly.
(Refer to Engine and Transmission Assembly - "ENGINE & TRANSMISSION ASSEMBLY ")
Disconnect the LH electric waste gate actuator (EWGA) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

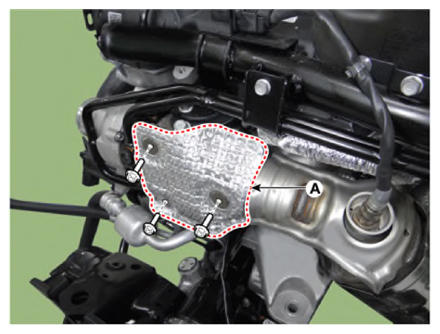

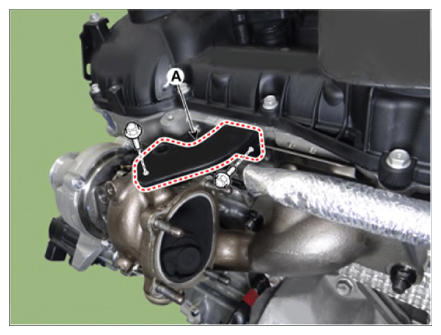

Remove the LH turbo manifold module heat protector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

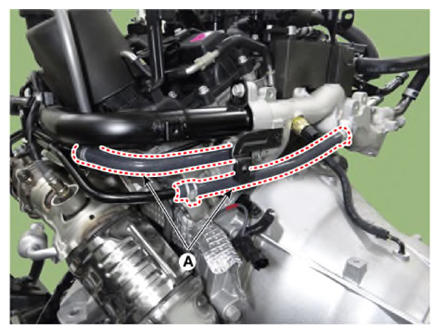

Disconnect the LH turbocharger water hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

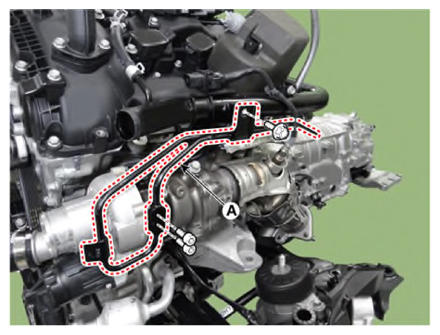

Remove the LH turbocharger water hose & pipe (A)
Tightening torque

Eye bolts:

33.3 - 39.2 N.m (3.4 - 4.0 kgf.m, 26.6 - 28.9 lb.ft)

Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

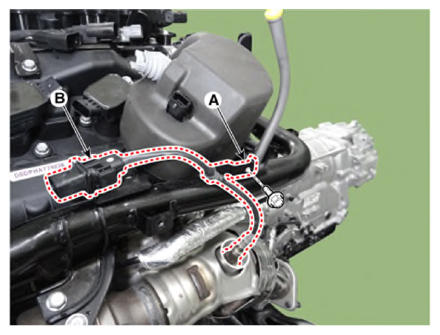

Remove the heated oxygean sensor (HO2S) wiring bracket (A) and then remove the heated oxygean sensor (HO2S) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

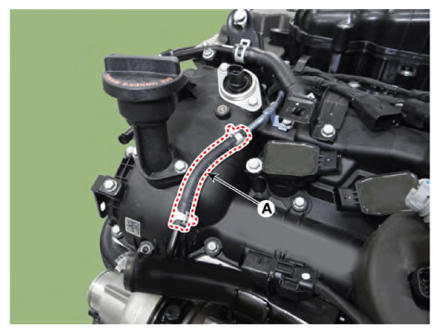

Disconnect the water hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

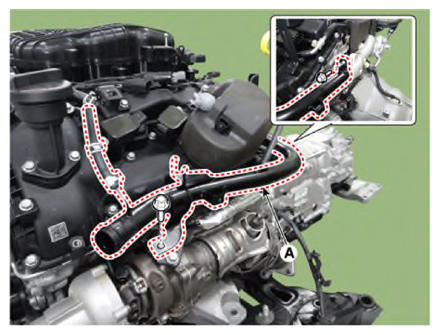

Remove the water outlet pipe (A).
Tightening torque:

24.5 - 28.4 N.m (2.5 - 2.9 kgf.m, 18.1 - 21.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

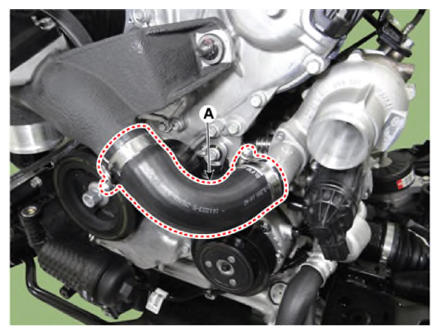

Disconnect the LH intercooler inlet hose (A).
Tightening torque:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Courtesy of KIA MOTORS AMERICA, INC.

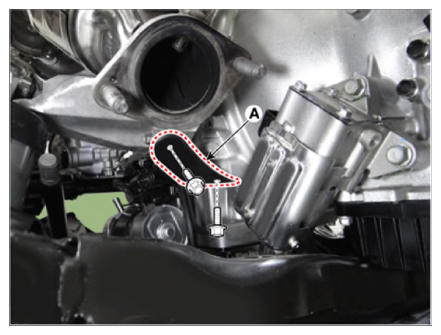

Remove the LH warm-up catalytic converter (WCC) stay (A).
Tightening torque:

34.3 - 41.2 N.m (3.5 - 4.2 kgf.m, 25.3 - 30.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

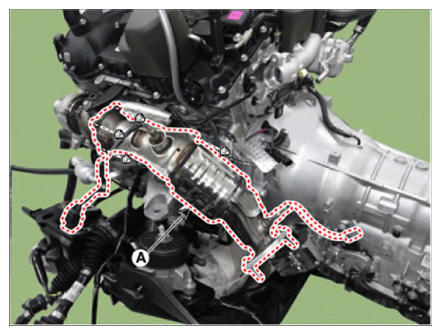

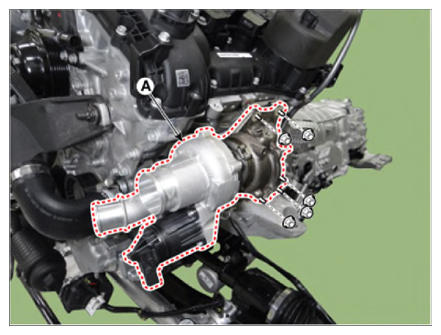

Remove the LH warm-up catalytic converter (WCC) (A).
Tightening torque:

35.3 - 41.2 N.m (3.6 - 4.2 kgf.m, 26.0 - 30.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH warm-up catalytic converter (WCC) gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the A/C compressor.
(Refer to Heating, Ventilation, Air Conditioning - "COMPRESSOR ")

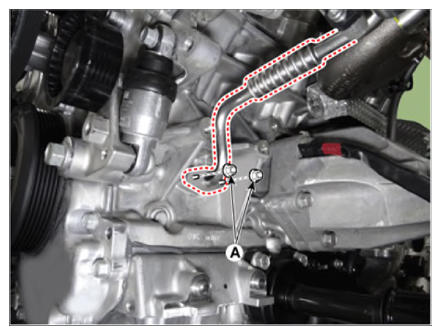

Remove the LH turbocharger oil drain pipe mounting nuts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH turbo manifold module stay (A).
Tightening torque:

26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

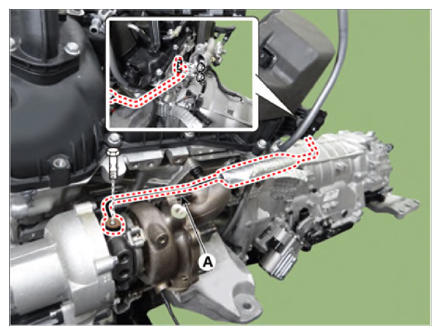

Remove the LH turbocharger oil feed pipe (A).
Tightening torque

Eye bolts:

11.8 - 17.7 N.m (1.2 - 1.8 kgf.m, 8.7 - 13.0 lb.ft)

Bolt:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the LH turbo manifold module (A).
Tightening torque:

58.8 - 63.7 N.m (6.0 - 6.5 kgf.m, 43.4 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

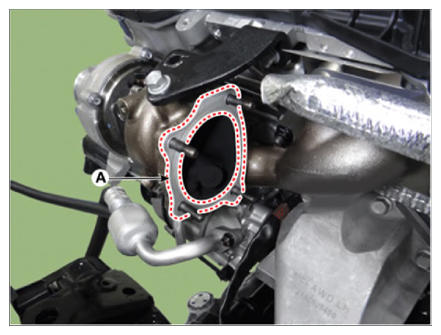

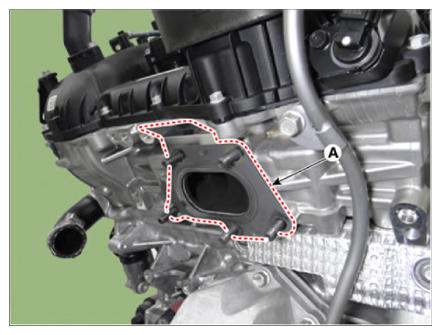

Remove the LH turbo manifold module gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

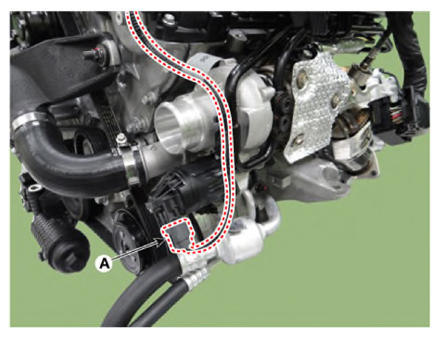

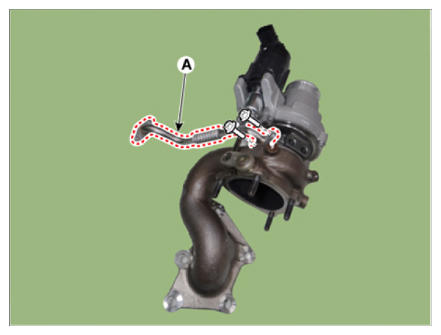

Remove the LH turbocharger oil drain pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Always use a new LH turbo manifold module gasket.
- Take care whether the oil feed pipe & hose assembly is interfered with turbo manifold module and any surrounding parts.
- If the oil feed pipe & hose is damaged, engine oil is not supplied sufficiently to the turbocharger then it may damage the turbocharger. If the oil drain pipe & hose is damaged and clogged, engine oil is not drained smoothly then it may cause oil leaks from the turbocharger. Be care full the oil feed pipe & hose not to damage. (bent, crushed, torn or cracked).
- When installing the LH turbo manifold module, tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.

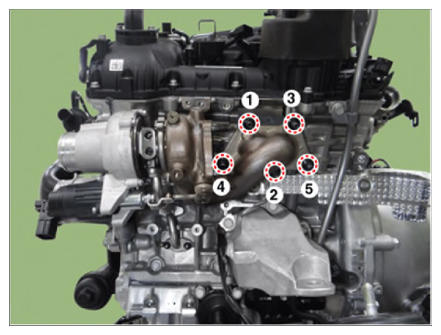

  Fig 1: LH Exhaust Manifold Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
- When installing the LH warm-up catalytic converter (WCC), tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.

  Fig 2: LH Warm-Up Catalytic Converter Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
