Components & Components Location: Components

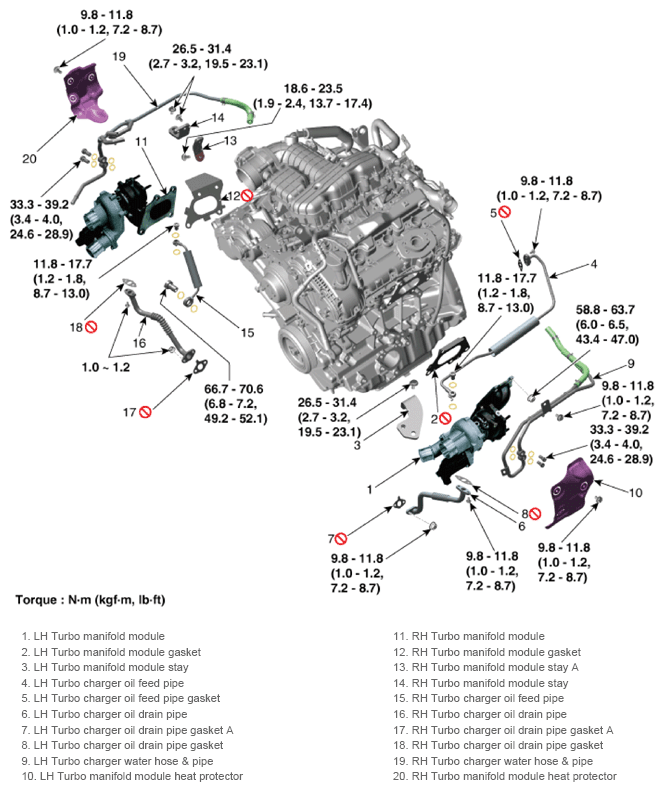

Fig 1: Turbocharger, Exhaust Manifold And Catalytic Converter Components With Torque Specification
G13427676Courtesy of KIA MOTORS AMERICA, INC.
