Removal and Installation
- Disconnect the negative battery terminal.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

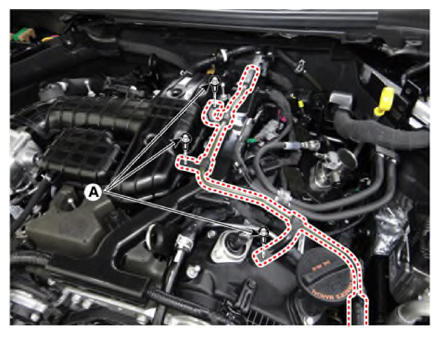

- Remove the brake vacuum pipe bracket mounting bolts (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
- Disconnect the wiring connectors and harness clamps and remove the wiring protector around the surge tank.

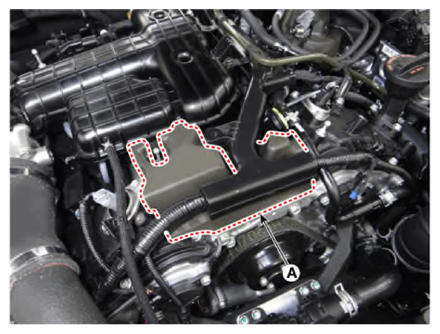

- Remove the foam (A).
- Disconnect the intercooler outlet hose.

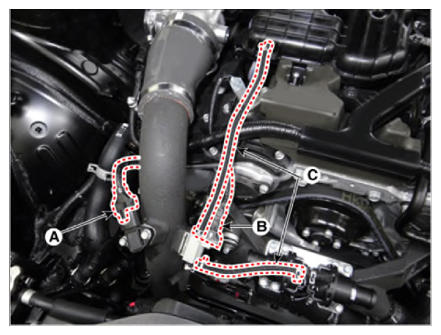

- Disconnect the booster pressure sensor (BPS) connector (A).
- Disconnect the RCV solenoid valve connector (B).
- Disconnect the vacuum hose (C).

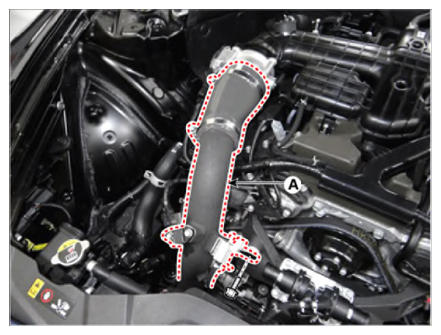

- Disconnect the intercooler outlet hose (A).
Tightening torque
Hose clamp:
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)
(If equipped with a cap, tighten it until the cap is removed.)
Pipe bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

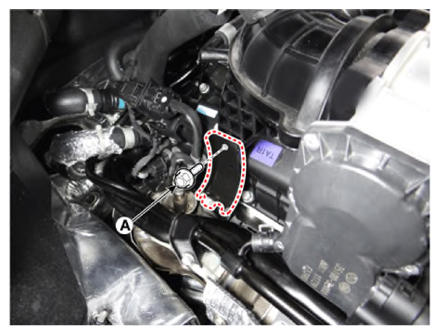

- Remove the surge tank stay mounting bolt (A).
Tightening torque:
26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)

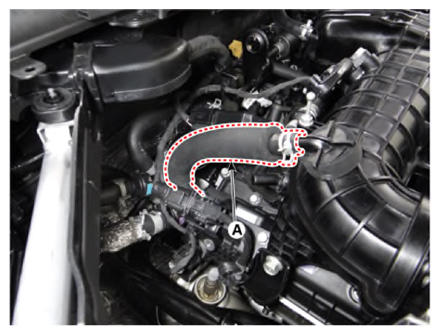

- Disconnect the positive crankcase ventilation (PCV) hose (A).

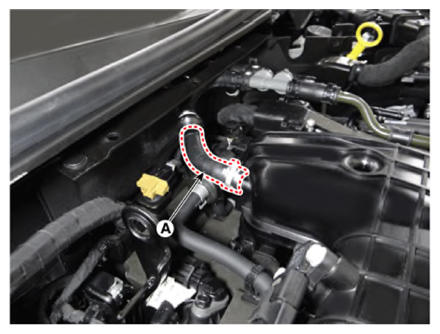

- Disconnect the brake vacuum hose (A).
- Separate the electric throttle control (ETC) module.
(Refer to Engine control/Fuel System - "ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM ")

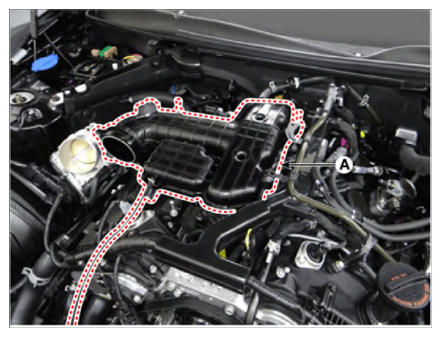

- Remove the surge tank (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.
