Intercooler Outlet Hose & Pipe

(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

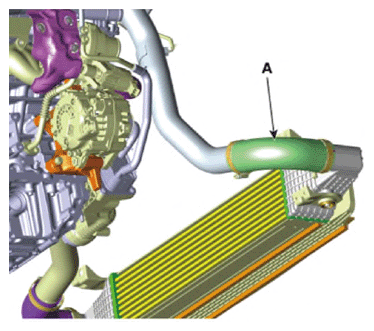

Tightening torque:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Courtesy of KIA MOTORS AMERICA, INC.

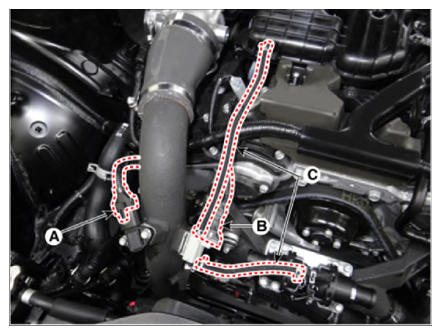

1. Disconnect the booster pressure sensor (BPS) connector (A).
2. Disconnect the RCV solenoid valve connector (B).
3. Disconnect the vacuum hose (C).

   Courtesy of KIA MOTORS AMERICA, INC.

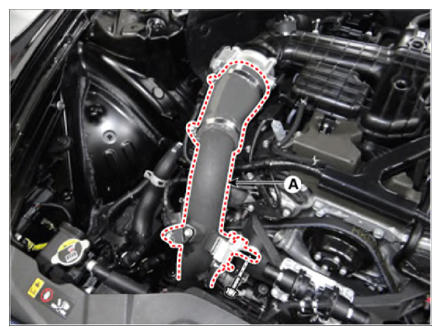

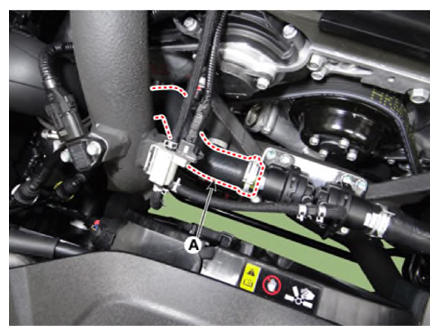

4. Remove the intercooler outlet hose (A).

   Tightening torque

   Hose clamp:

   4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

   (If equipped with a cap, tighten it until the cap is removed.)

   Pipe bolt:

   18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
