Intercooler Inlet Hose & Pipe

  1. Remove the engine room front under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

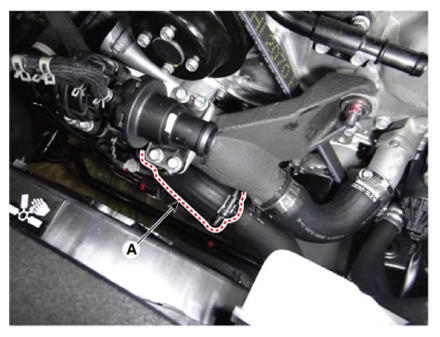

  2. Disconnect the intercooler inlet hose (A) from the intercooler inlet joint.

    Tightening torque:

    4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft. 43.4 - 60.8 lb.in)

    (If equipped with a cap, tighten it until the cap is removed.)

    G13427725Courtesy of KIA MOTORS AMERICA, INC.

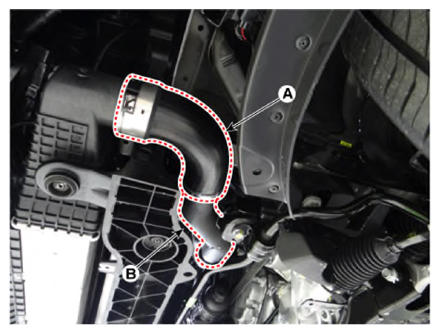

  3. Remove the intercooler inlet hose & pipe (A).
    G13427726Courtesy of KIA MOTORS AMERICA, INC.

    Information

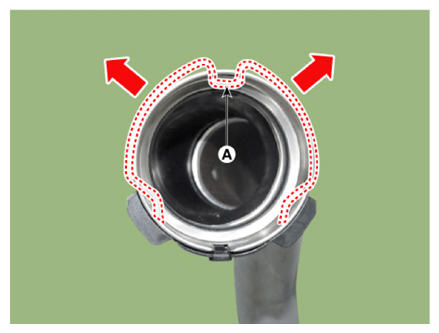

    1. When disconnect the intercooler inlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.
      G13427727Courtesy of KIA MOTORS AMERICA, INC.

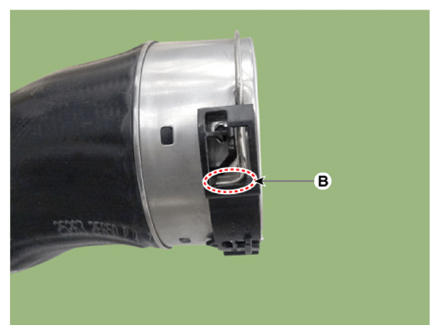

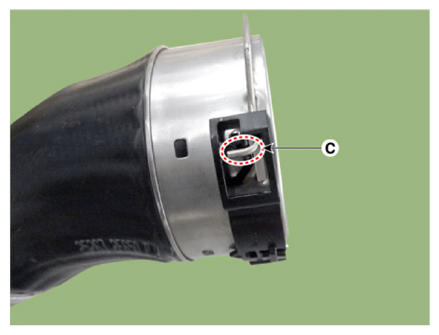

    2. Move the quick connector clamp from position (B) to position (C) as shown below and pull out the quick connector hose.
      G13427728Courtesy of KIA MOTORS AMERICA, INC.
      G13427729Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
