RH Air Cleaner Assembly

Tightening torque:

46.1 - 60.8 N.m (4.7 - 6.2 kgf.m, 34.0 - 44.8 lbf.ft)

Courtesy of KIA MOTORS AMERICA, INC.

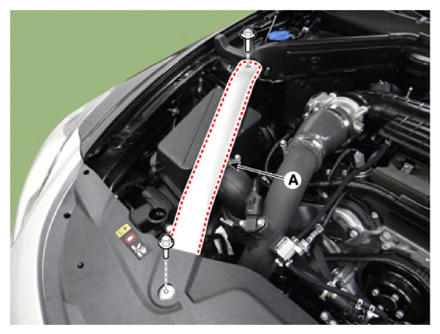

1. Disconnect the RCV hose (A).

   Courtesy of KIA MOTORS AMERICA, INC.

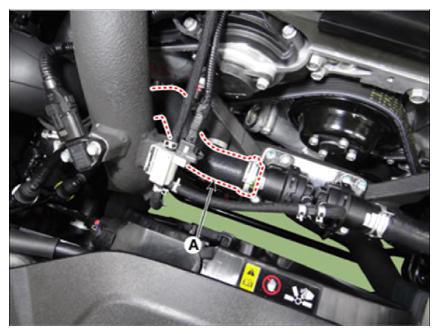

2. Disconnect the air intake hose (A).

   Tightening torque:

   2.8 - 4.8 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft. 26.0 - 43.4 lb.in)

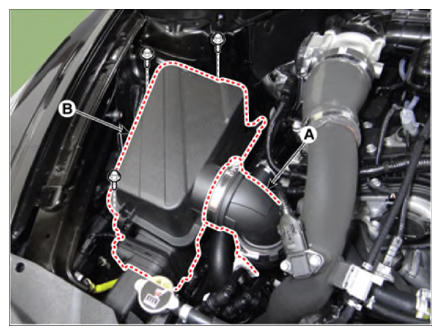

3. Remove the LH air cleaner assembly (B).

   Tightening torque:

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
