LH Air Cleaner Assembly

  1. Disconnect the negative battery terminal.

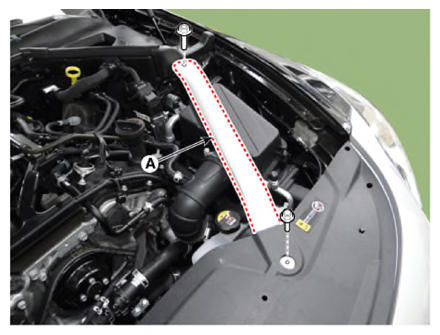

  2. Remove the LH front strut bar (A).

    Tightening torque:

    46.1 - 60.8 N.m (4.7 - 6.2 kgf.m, 34.0 - 44.8 lbf.ft)

    G13427639Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the LH air cleaner assembly.
    1. Disconnect the RCV hose (A).
      G13427640Courtesy of KIA MOTORS AMERICA, INC.

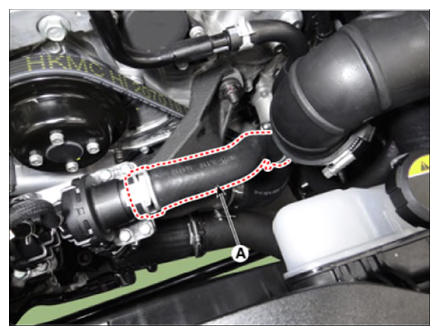

    2. Disconnect the RCV hose (A).
      G13427641Courtesy of KIA MOTORS AMERICA, INC.

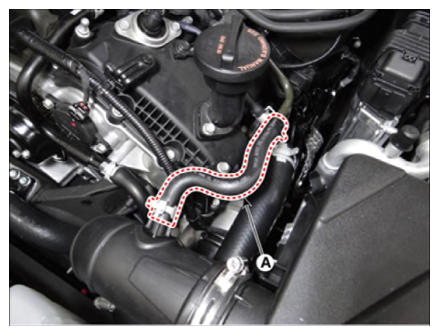

    3. Disconnect the breather hose (A).
    4. Disconnect the air intake hose (B).

      Tightening torque:

      2.8 - 4.8 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft. 26.0 - 43.4 lb.in)

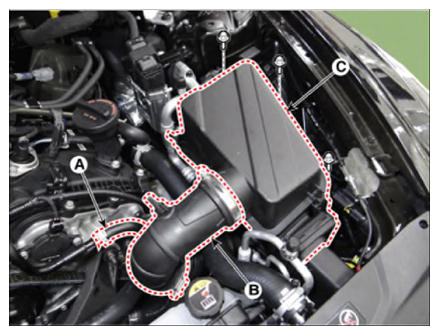

    5. Remove the LH air cleaner assembly (C).

      Tightening torque:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

    G13427642Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
