Air Cleaner Element

  1. Remove the LH and RH front strut bar (A).

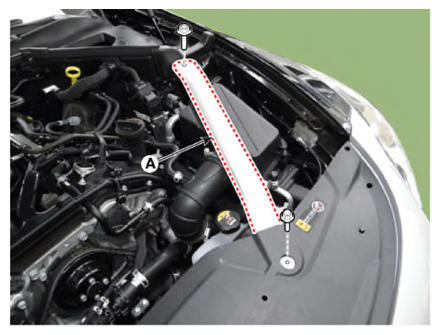

    [LH]

    G13427646Courtesy of KIA MOTORS AMERICA, INC.

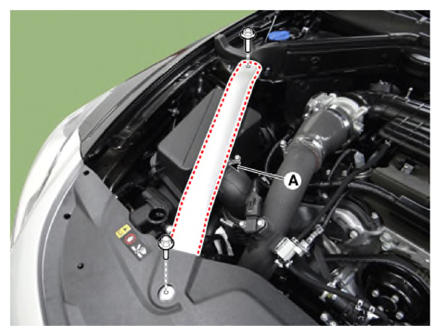

    [RH]

    G13427647Courtesy of KIA MOTORS AMERICA, INC.
  2. Open the air cleaner element cover (A) by unlocking the clamp.

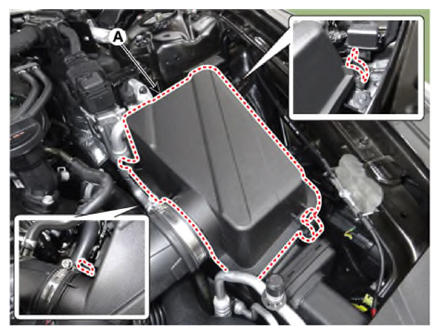

    [LH]

    G13427648Courtesy of KIA MOTORS AMERICA, INC.

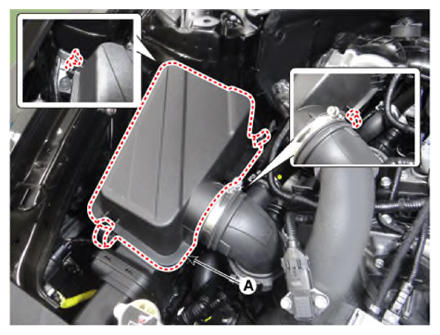

    [RH]

    G13427649Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the air cleaner element (A) with a new one.

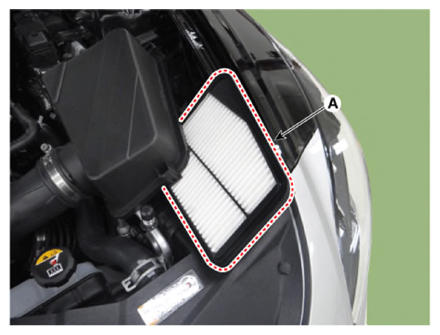

    [LH]

    G13427650Courtesy of KIA MOTORS AMERICA, INC.

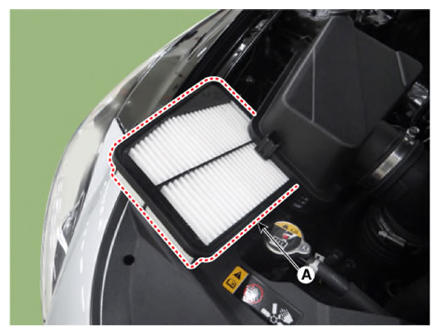

    [RH]

    G13427651Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
  4. Close the air cleaner cover by hooking the clamps.
