Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the oil filler plug (A).

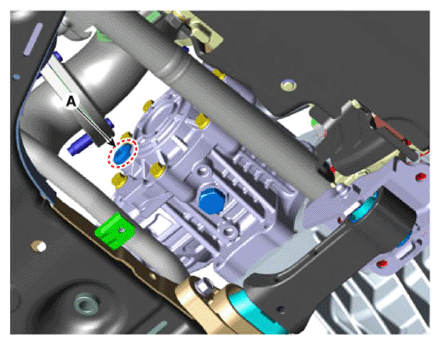

Smartstream G 2.5 GDi

Courtesy of KIA MOTORS AMERICA, INC.

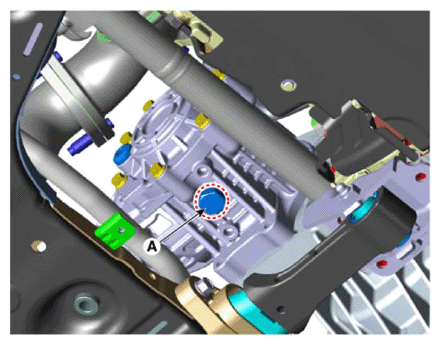

Smartstream G 2.5 T - GDi

Courtesy of KIA MOTORS AMERICA, INC.
Remove the drain plug (A) and wait for over 10 minutes until the oil is drained enough and then reinstall the drain plug.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.3 lb.ft)

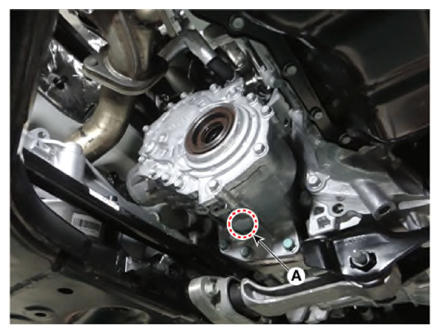

Smartstream G 2.5 GDi

Courtesy of KIA MOTORS AMERICA, INC.

Smartstream G 2.5 T - GDi

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil drain plug gasket must be replaced with a new one (do not reuse)
After checking the oil level, refill the with oil through the filler plug hole.
Specification:

Hypoid gear oil API GL - 5, SAE 75W/85 (SK HCT - 5 75W/85 or equivalent)

Capacity

Smartstream G 2.5 GDi: 0.65 l (0.17 U.S.gal, 0.69 U.S.qt, 0.57 lmp, qt)

Smartstream G 2.5 T - GDi: 0.5 l (0.13 U.S.gal, 0.53 U.S.qt, 0.44 lmp, qt)
Install the oil filler plug (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

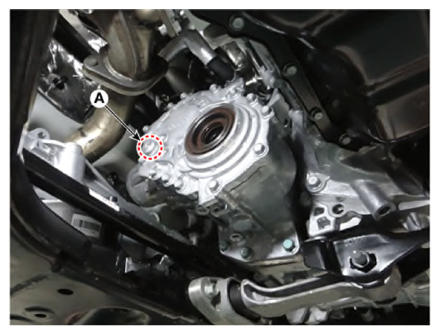

Smartstream G 2.5 GDi

Courtesy of KIA MOTORS AMERICA, INC.

Smartstream G 2.5 T - GDi

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse)
