Smartstream G 2.5 T - GDi

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer assembly.

    (Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")

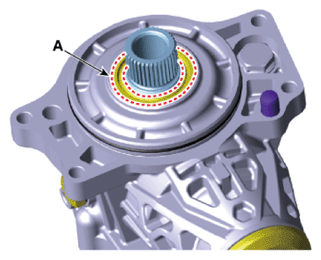

  2. Remove the oil seal (A).
    G13661560Courtesy of KIA MOTORS AMERICA, INC.

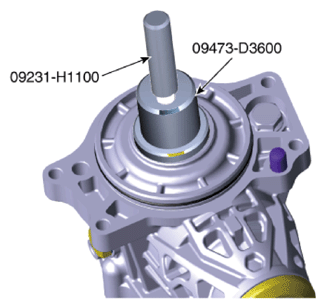

  3. Install the oil seal by using the special service tools (09473 - D3600, 09231 - H1100).
    G13661561Courtesy of KIA MOTORS AMERICA, INC.
  4. If the transfer oil is leaking, add the transfer with oil.

    (Refer to All Wheel Drive System - "TRANSFER OIL ")

  5. Install the transfer assembly.

    (Refer to All Wheel Drive System - "FRONT WHEEL TRANSFER ASSEMBLY ")
