Oil Seal #3 (Drive Shaft Side)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front driveshaft [RH].

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

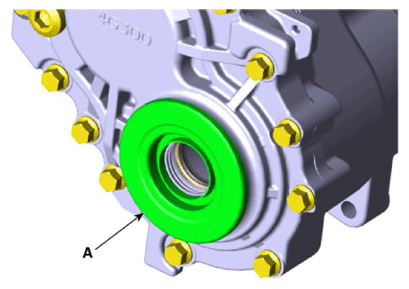

  2. Remove the dust cover (A).
    G13661553Courtesy of KIA MOTORS AMERICA, INC.

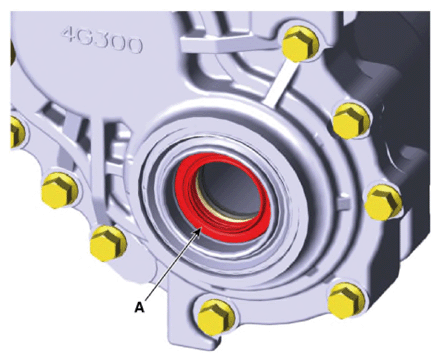

  3. Remove the oil seal #2 (A).
    G13661554Courtesy of KIA MOTORS AMERICA, INC.

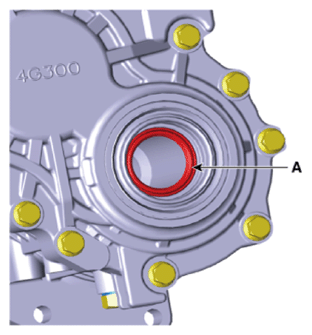

  4. Remove the oil seal #3 (A).
    G13661555Courtesy of KIA MOTORS AMERICA, INC.

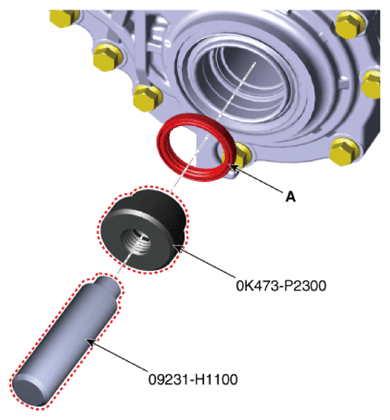

  5. Install the oil seal #3 with a new one by using the special service tools (0K473 - P2300, 09231 - H1100).
    G13661556Courtesy of KIA MOTORS AMERICA, INC.

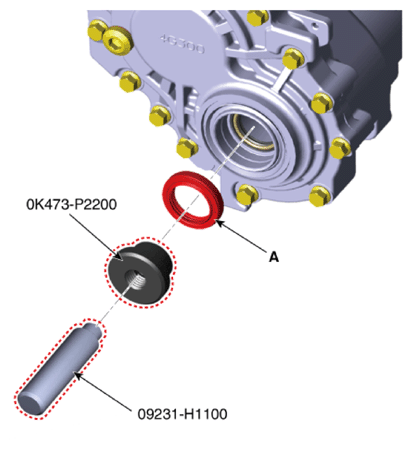

  6. Install the oil seal #2 with a new one by using the special service tools (0K473 - P2200, 09231 - H1100).
    G13661557Courtesy of KIA MOTORS AMERICA, INC.
  7. Install the dust cover with a new one.
  8. If the transfer oil is leaking, add the transfer with oil.

    (Refer to All Wheel Drive System - "TRANSFER OIL ")

  9. Install the right side front driveshaft.

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")
