Oil Seal #1 (Drive Shaft Side)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front driveshaft [RH].

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

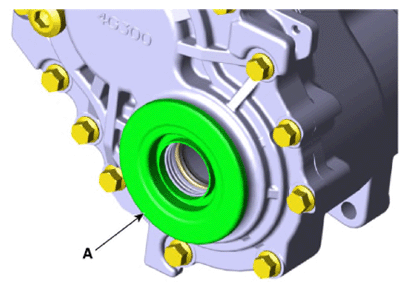

  2. Remove the dust cover (A).
    G13661547Courtesy of KIA MOTORS AMERICA, INC.

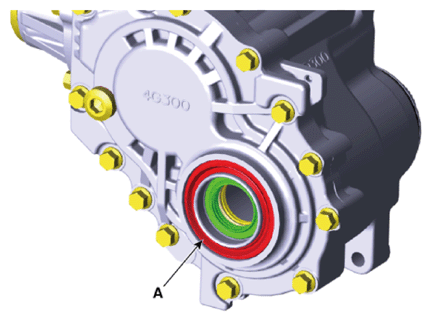

  3. Remove the oil seal #1 (A).
    G13661548Courtesy of KIA MOTORS AMERICA, INC.

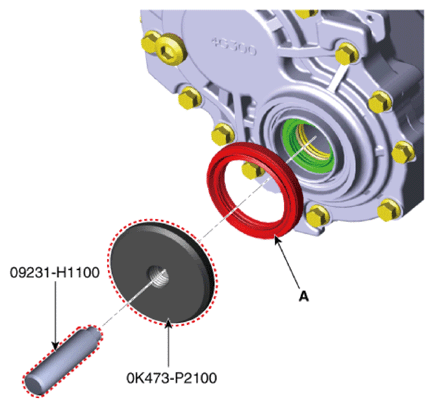

  4. Install the oil seal #1 with a new one by using the special service tools (0K473 - P2100, 09231 - H1100).
    G13661549Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the dust cover with a new one.
  6. If the transfer oil is leaking, add the transfer with oil.

    (Refer to All Wheel Drive System - "TRANSFER OIL ")

  7. Install the front driveshaft [RH].

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")
