Description & Operation: Description

WARNING: This page is about a different variant/trim than selected.

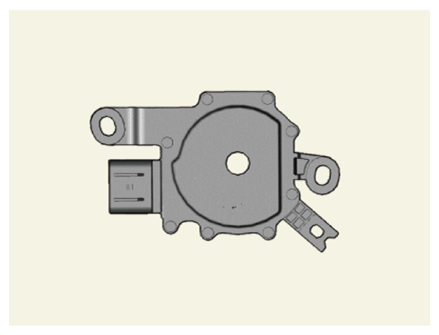

The position switch signals delivered at the TCM according to control of the shift lever positions (P, R, N, D) and it is used to control of the gear setting.
When the shift lever is placed in P or N range, send the output signal to the start relay.
When the shift lever is placed in R range, send the output signal to the back-up lamps.

Courtesy of KIA MOTORS AMERICA, INC.
