Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

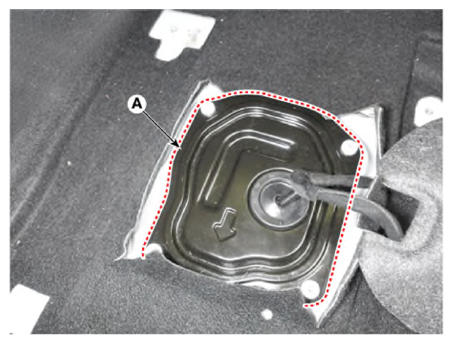

  3. Remove the fuel pump service cover (A).
    G13661218Courtesy of KIA MOTORS AMERICA, INC.

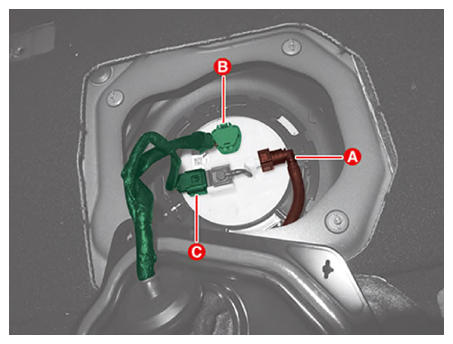

  4. Disconnect the connectors (A, B, C) from the fuel pump.
    1. Fuel injection tube quick-connector
    2. Fuel pump connector
    3. Fuel tank pressure sensor connector
    G13661219Courtesy of KIA MOTORS AMERICA, INC.

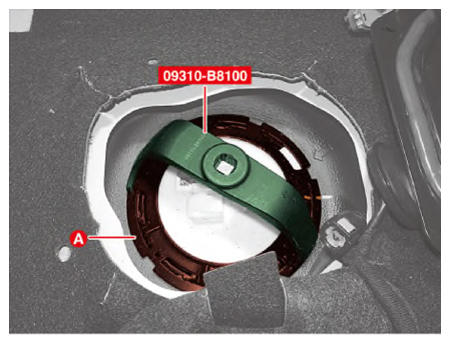

  5. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310 - B8100).
    G13661220Courtesy of KIA MOTORS AMERICA, INC.
