Repair Procedures: Removal

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the RH front wheel guard.

    (Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

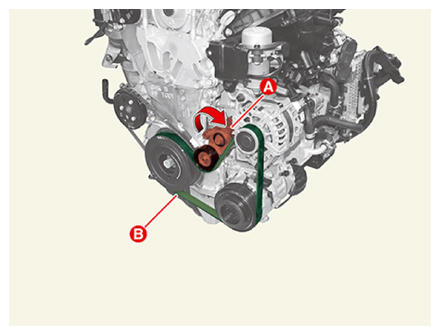

  3. For release the tension, turn the drive belt tensioner (A) clockwise then remove the drive belt (B).
    G13664288Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the water pump belt.

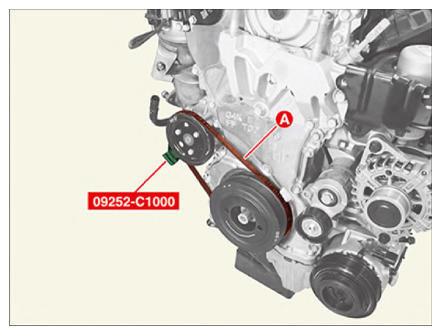

    1. Insert the SST (09252 - C1000) between the water pump pulley and the water pump belt.
    2. Remove the water pump belt (A) by turning the damper pulley clockwise.
      G13664289Courtesy of KIA MOTORS AMERICA, INC.
