Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
SHVU FR connector (W/O SVM) | 1, 3, 15, 17 (power) | Chassis ground | - | B+ |
| SHVU FR connector (W/O SVM) | 14, 28 (ground) | Chassis ground | - | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 8, 11, 12, 20 (power) | Chassis ground | - | B+ | |
| SHVU FR connector (with SVM) | 7, 8 (ground) | Chassis ground | - | Approx. below 1Ω | |
|
SHVU FR connector (W/O SVM) | 5 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SHVU FR connector (W/O SVM) | 5 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 5 (B-CAN high) | IBU connector | 36 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | IBU connector | 35 (B-CAN low) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 4 (B-CAN high) | IBU connector | 36 (B-CAN high) | Approx. below 1Ω | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | IBU connector | 35 (B-CAN low) | Approx. below 1Ω | |
|

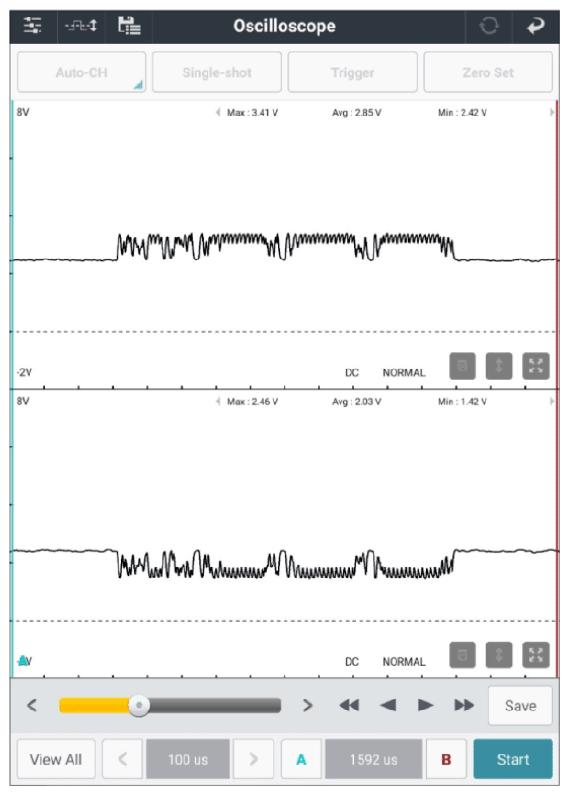

SHVU FR connector (W/O SVM) | 5 (B-CAN high) | Chassis ground | - | Figure below |
| SHVU FR connector (W/O SVM) | 4 (B-CAN low) | Chassis ground | - | ||
| SHVU FR connector (with SVM) | 4 (B-CAN high) | Chassis ground | - | Figure below | |
| SHVU FR connector (with SVM) | 3 (B-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- If problem still occurs, replace control unit that causing the fault and then go to "VERIFICATION OF REPAIR " procedure.
