Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
Remove the side seal moulding with the front and rear door full open.

Remove the front wheel guard.
(Refer to Body Side Molding - "FRONT WHEEL GUARD ")
Remove the rear wheel guard.
(Refer to Body Side Molding - "REAR WHEEL GUARD ")

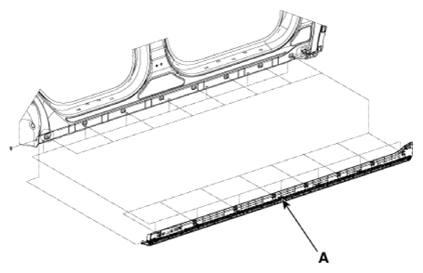

Remove the side sill molding (A) by using the remover.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
