Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Electronic oil pump motor | 2 (Memory power) | Chassis ground | - | B+ |
|
Electronic oil pump motor | 1 (ground) | Chassis ground | - | B+ |
|

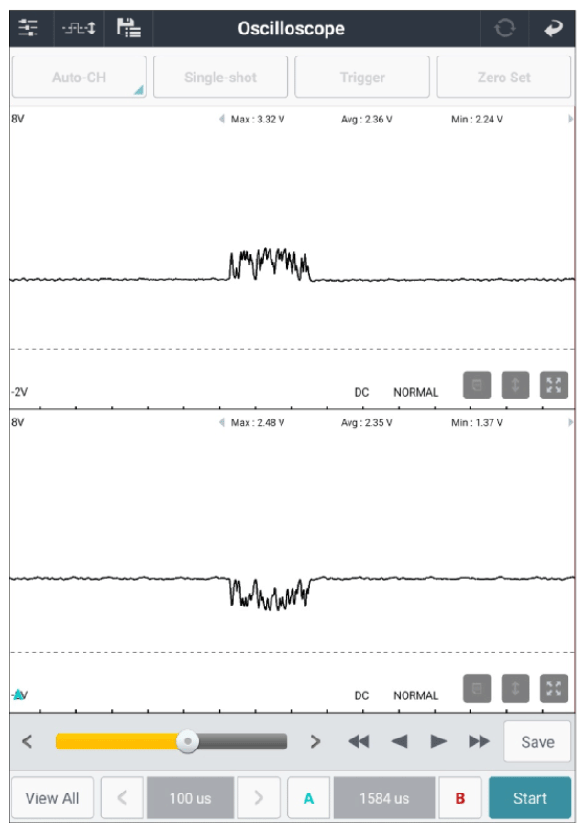

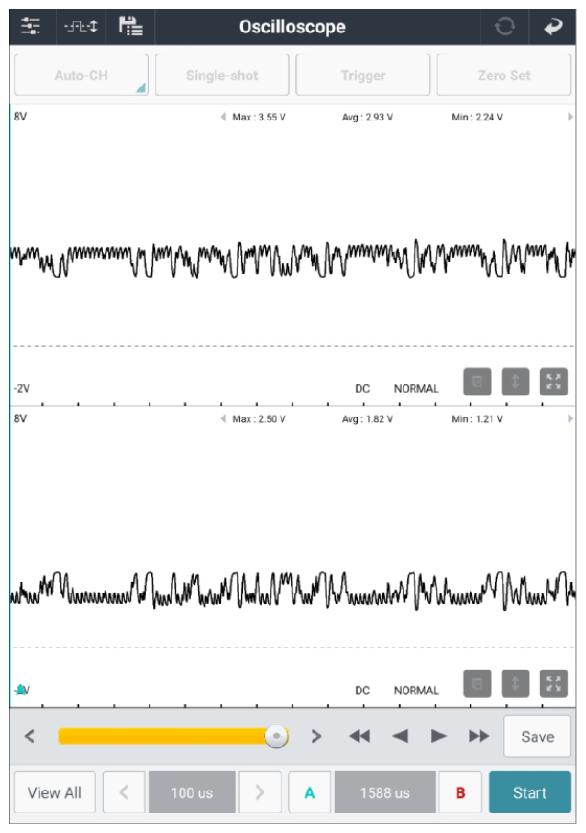

Electronic oil pump motor | 3 (PT L-CAN high) | Chassis ground | - | Fig.1 |
| Electronic oil pump motor | 4 (PT L-CAN low) | Chassis ground | - | ||
| Electronic oil pump motor | 5 (DCT L-CAN high) | Chassis ground | - | Fig.2 | |
| Electronic oil pump motor | 6 (DCT L-CAN low) | Chassis ground | - | ||
|
ECM (component side) | 78 (PT L-CAN high) | ECM (component side) | 61 (PT L-CAN low) | Approx. 120Ω |
| ECM (component side) | 76 (PT L-CAN high) | ECM (component side) | 59 (PT L-CAN low) | Approx. 120Ω | |
|
Electronic oil pump motor (component side) | 5 (DCT L-CAN high) | Electronic oil pump motor (component side) | 6 (DCT L-CAN low) | Approx. 120Ω |
| TCM (component side) | 24 (DCT L-CAN high) | TCM (component side) | 25 (DCT L-CAN low) | Approx. 120Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- Check circuit for open circuit or short circuit after repair, go to "VERIFICATION OF REPAIR ".
