DTC P2840-01: Shift Fork 'D' Position: General Description

WARNING: This page is about a different variant/trim than selected.

It is an eight-speed layout that optimizes gear placement, an electric oil pump and a high-efficiency wet double clutch that is applied with technologies that enhance efficiency in power transfer. Using the pressure of the oil supplied through the solenoid, move the fork at each end and then gather and combine the gears.

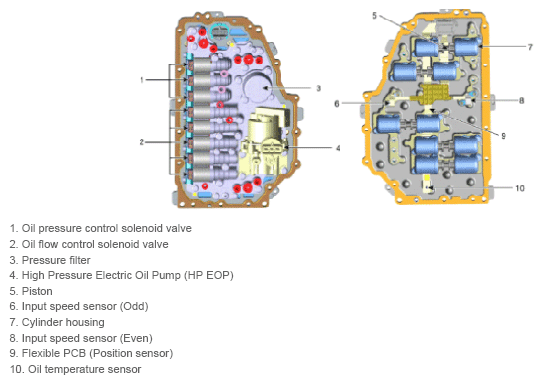

G13690032Courtesy of KIA MOTORS AMERICA, INC.
