Circuit Inspection

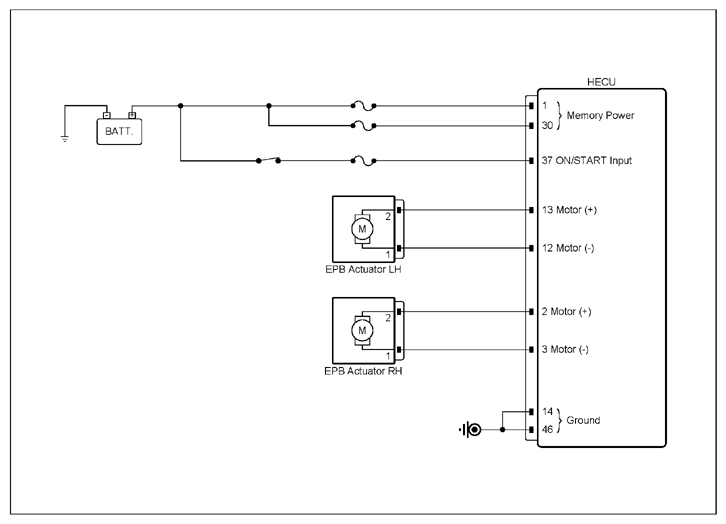

G13667166

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	EPB actuator LH connector	2 (motor +)	Chassis ground	-	Approx. 10V
Ignition "ON".	EPB actuator LH connector	1 (motor -)	Chassis ground	-	Approx. 10V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EPB actuator LH connector	2 (motor +)	HECU connector (With EPB)	13 (motor +)	Approx. below 1Ω
	EPB actuator LH connector	1 (motor -)	HECU connector (With EPB)	12 (motor -)	Approx. below 1Ω
	EPB actuator LH connector	2 (motor +)	EPB actuator LH connector	1 (motor -)	Approx. 0.2Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
