Component Inspection

Inspection Condition	Inspection Procedure	Reference

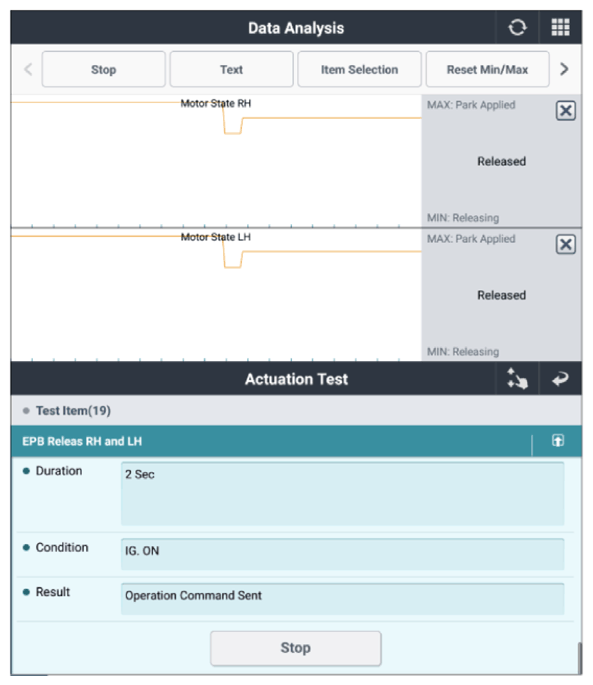

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" and check for operating sound.	Fig.1 to 2

G13667155

Courtesy of KIA MOTORS AMERICA, INC.

G13667156

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the EPB actuator and go to "VERIFICATION OF REPAIR " procedure.
