Circuit Inspection
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
PCM (G 2.5 GDI) connector | 5, 51 (power) | Chassis ground | - | B+ |
| ECM (G 2.5 T-GDI) connector | 41, 75 (power) | Chassis ground | - | B+ | |
|
PCM (G 2.5 GDI) connector | 1, 4, 25, 48 (ground) | Chassis ground | - | Approx. below 1Ω |
| ECM (G 2.5 T-GDI) connector | 1, 2, 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Go to next procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
| CAN communication circuit Inspection (W/O EPB) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

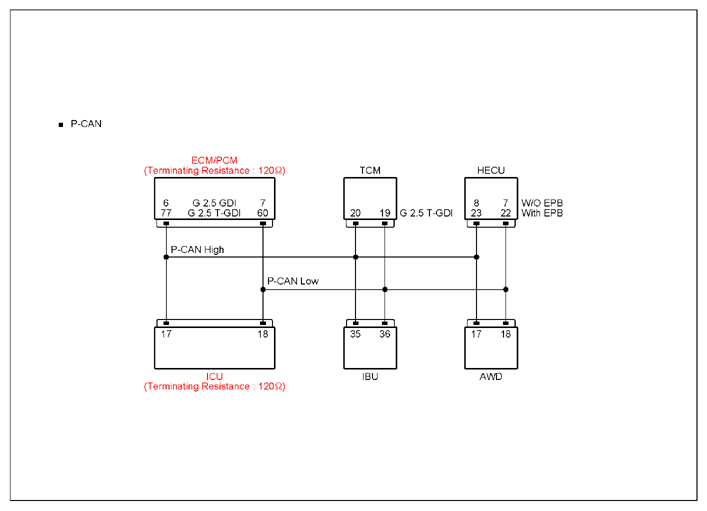

HECU connector | 8 (P-CAN high) | Chassis ground | - | Fig.1 |
| HECU connector | 7 (P-CAN low) | Chassis ground | - | ||
|
PCM (G 2.5 GDI) connector | 6 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| ECM (G 2.5 T-GDI) connector | 77 (P-CAN high) | ||||
| PCM (G 2.5 GDI) connector | 7 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM (G 2.5 T-GDI) connector | 60 (P-CAN low) | ||||
|
HECU connector | 8 (P-CAN high) | PCM (G 2.5 GDI) connector | 6 (P-CAN high) | Approx. below 1Ω |
| ECM (G 2.5 T-GDI) connector | 77 (P-CAN high) | ||||
| HECU connector | 7 (P-CAN low) | PCM (G 2.5 GDI) connector | 7 (P-CAN low) | Approx. below 1Ω | |
| ECM (G 2.5 T-GDI) connector | 60 (P-CAN low) | ||||
|
HECU connector | 8 (P-CAN high) | HECU connector | 7 (P-CAN low) | Approx. 60Ω |
| CAN communication circuit Inspection (With EPB) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

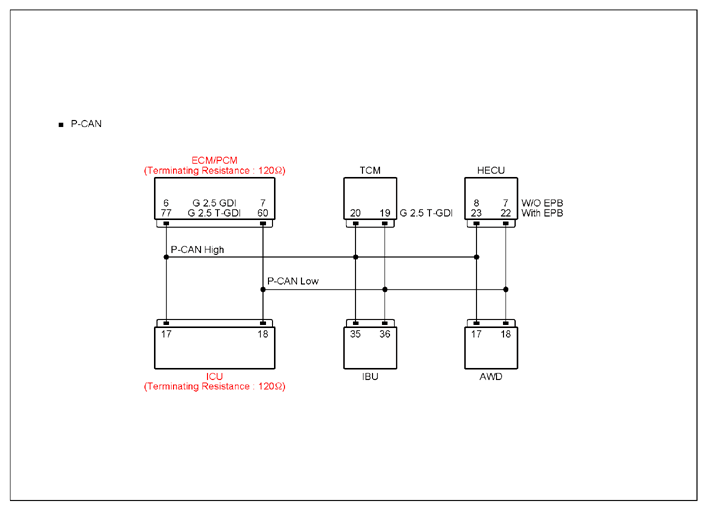

HECU connector | 23 (P-CAN high) | Chassis ground | - | Fig.1 |
| HECU connector | 22 (P-CAN low) | Chassis ground | - | ||
|
PCM (G 2.5 GDI) connector | 6 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| ECM (G 2.5 T-GDI) connector | 77 (P-CAN high) | ||||
| PCM (G 2.5 GDI) connector | 7 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM (G 2.5 T-GDI) connector | 60 (P-CAN low) | ||||
|
HECU connector | 23 (P-CAN high) | PCM (G 2.5 GDI) connector | 6 (P-CAN high) | Approx. below 1Ω |
| ECM (G 2.5 T-GDI) connector | 77 (P-CAN high) | ||||
| HECU connector | 22 (P-CAN low) | PCM (G 2.5 GDI) connector | 7 (P-CAN low) | Approx. below 1Ω | |
| ECM (G 2.5 T-GDI) connector | 60 (P-CAN low) | ||||
|
HECU connector | 23 (P-CAN high) | HECU connector | 22 (P-CAN low) | Approx. 60Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace ECM and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
