Circuit Inspection

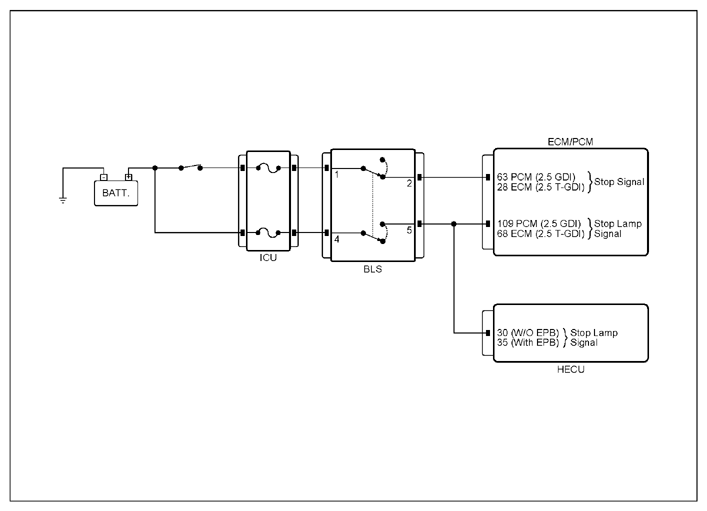

G13666765

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	BLS connector	4 (Memory power)	Chassis ground	-	B+
	BLS connector	1 (ON/START Input)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	BLS connector	2 (stop signal)	PCM (G 2.5 GDI) connector	63 (stop signal)	Approx. below 1Ω
	BLS connector	2 (stop signal)	ECM (G 2.5 T-GDI) connector	28 (stop signal)	Approx. below 1Ω
	BLS connector	5 (stop lamp signal)	PCM (G 2.5 GDI) connector	109 (stop lamp signal)	Approx. below 1Ω
			ECM (G 2.5 T-GDI) connector	68 (stop lamp signal)	Approx. below 1Ω
			HECU (W/O EPB) connector	30 (stop lamp signal)	Approx. below 1Ω
			HECU (With EPB) connector	35 (stop lamp signal)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
