Circuit Inspection

G13666746

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	EPB switch connector	17 (SW1)	EPB switch connector	18 (SW2)	Fig.1
Ignition "ON".	EPB switch connector	19 (SW3)	EPB switch connector	20 (SW4)	Fig.1
Ignition "ON". EPB switch "release".	EPB switch connector	17 (SW1)	EPB switch connector	18 (SW2)	Fig.2
Ignition "ON". EPB switch "release".	EPB switch connector	19 (SW3)	EPB switch connector	20 (SW4)	Fig.2
Ignition "ON". EPB switch "apply".	EPB switch connector	17 (SW1)	EPB switch connector	18 (SW2)	Fig.3
Ignition "ON". EPB switch "apply".	EPB switch connector	19 (SW3)	EPB switch connector	20 (SW4)	Fig.3
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EPB switch connector	17 (SW1)	HECU connector	6 (SW1)	Approx. below 1Ω
	EPB switch connector	18 (SW2)	HECU connector	7 (SW2)	Approx. below 1Ω
	EPB switch connector	19 (SW3)	HECU connector	8 (SW3)	Approx. below 1Ω
	EPB switch connector	20 (SW4)	HECU connector	9 (SW4)	Approx. below 1Ω

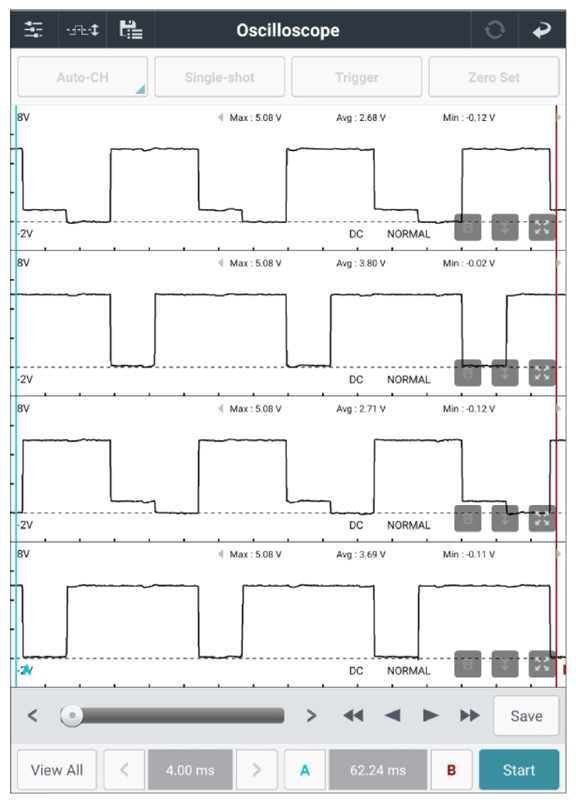

G13666747

Courtesy of KIA MOTORS AMERICA, INC.

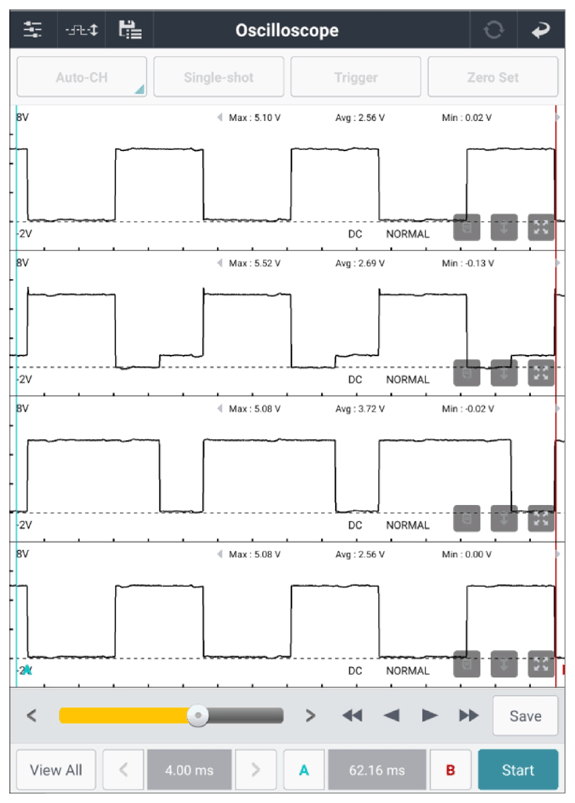

G13666748

Courtesy of KIA MOTORS AMERICA, INC.

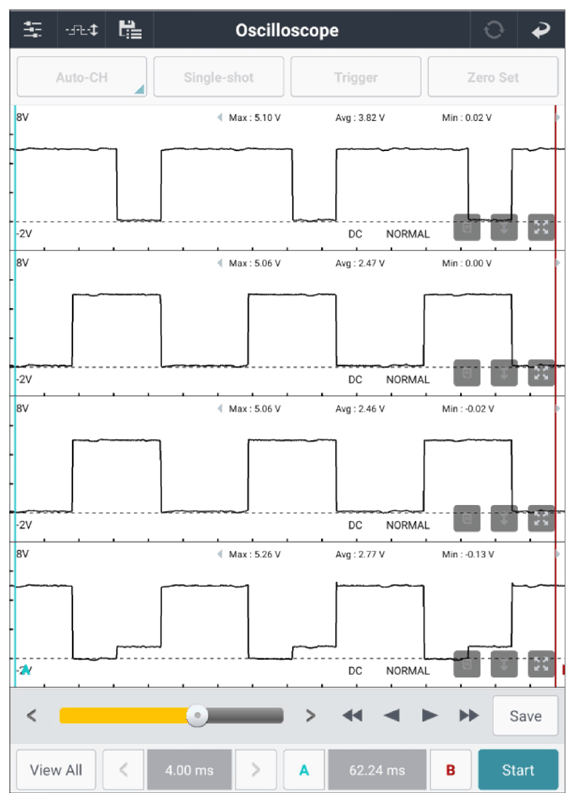

G13666749

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
