Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 5
G13117096Courtesy of KIA MOTORS AMERICA, INC.
G13117097Courtesy of KIA MOTORS AMERICA, INC.
G13117098Courtesy of KIA MOTORS AMERICA, INC.

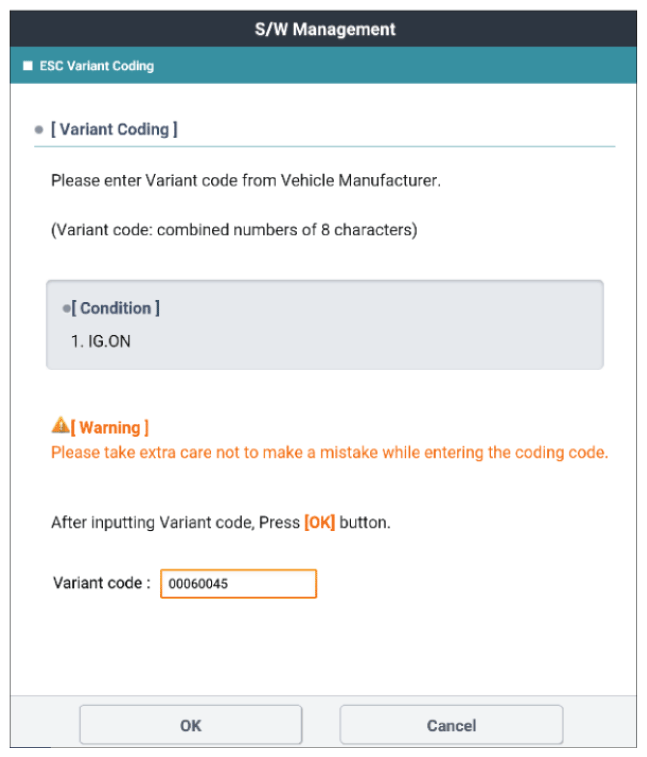

G13117099Courtesy of KIA MOTORS AMERICA, INC.
G13117100Courtesy of KIA MOTORS AMERICA, INC.
