Steering Angle Sensor (SAS) Calibration

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Align front wheels straight.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Steering Angle Sensor (SAS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

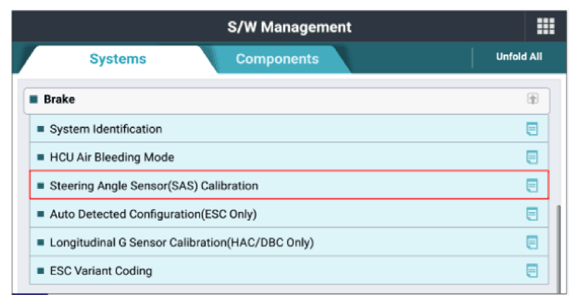

G13666824Courtesy of KIA MOTORS AMERICA, INC.

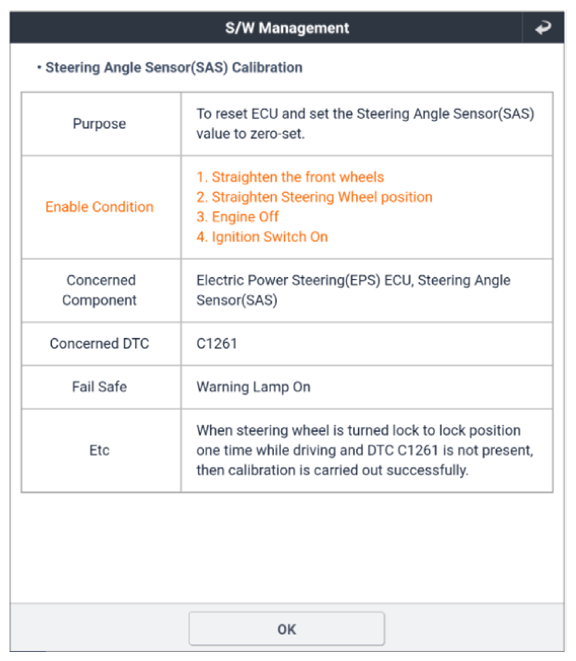

G13666825Courtesy of KIA MOTORS AMERICA, INC.

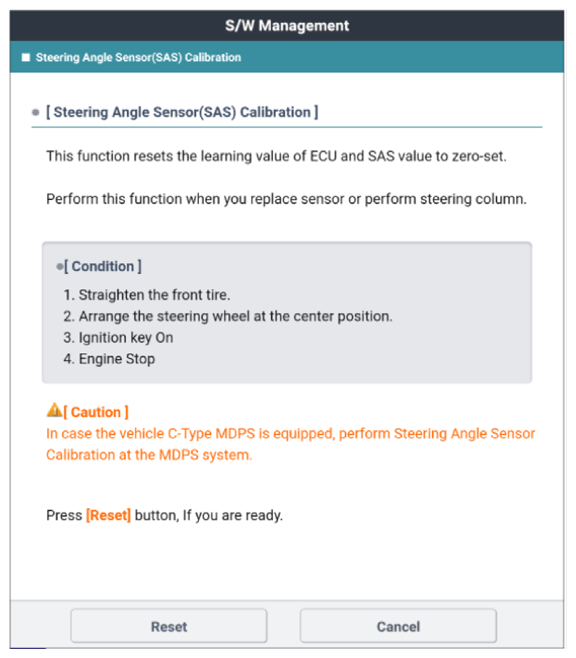

G13666826Courtesy of KIA MOTORS AMERICA, INC.
G13666827Courtesy of KIA MOTORS AMERICA, INC.
G13666828Courtesy of KIA MOTORS AMERICA, INC.
