HCU Air Bleeding Mode

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".

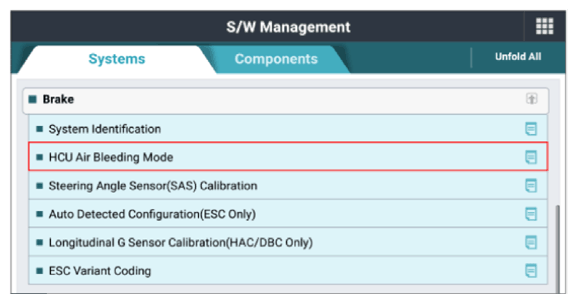

  2. Perform "HCU Air Bleeding Mode" in "Vehicle S/W management" with KDS.

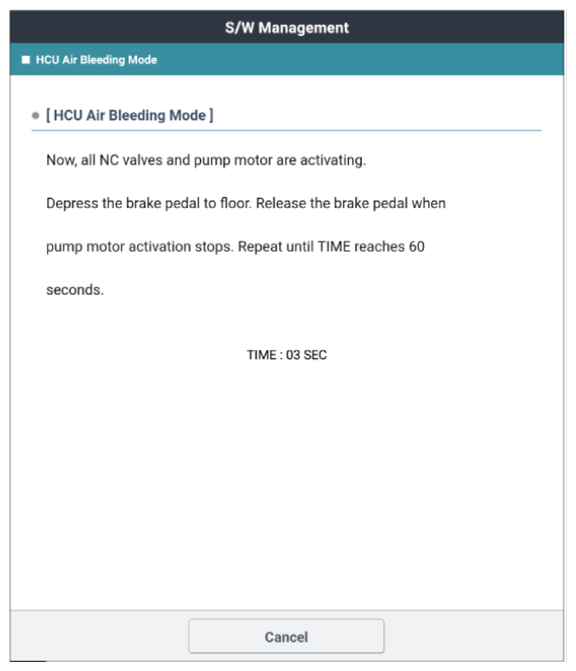

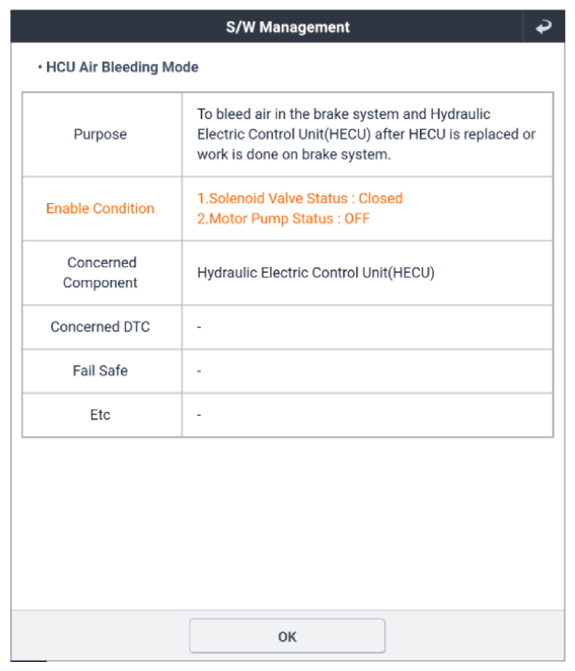

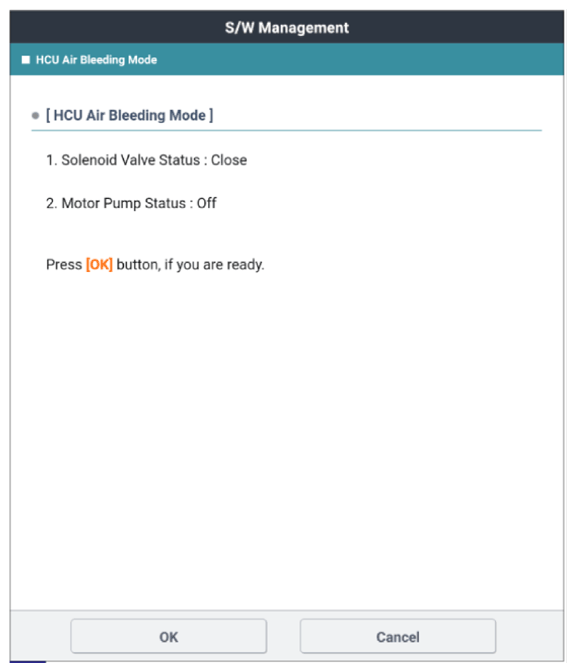

 Fig.1 to 5
G13666819Courtesy of KIA MOTORS AMERICA, INC.
G13666820Courtesy of KIA MOTORS AMERICA, INC.
G13666821Courtesy of KIA MOTORS AMERICA, INC.
G13666822Courtesy of KIA MOTORS AMERICA, INC.
G13666823Courtesy of KIA MOTORS AMERICA, INC.
