Longitudinal G Sensor Calibration (HAC/DBC Only)

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

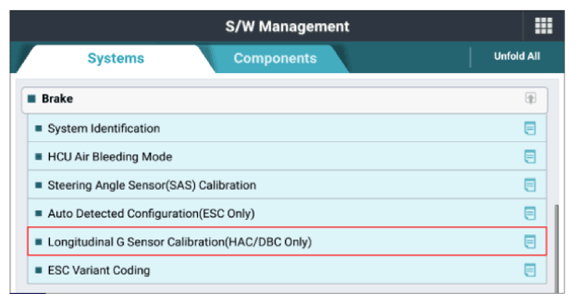

G13666554Courtesy of KIA MOTORS AMERICA, INC.

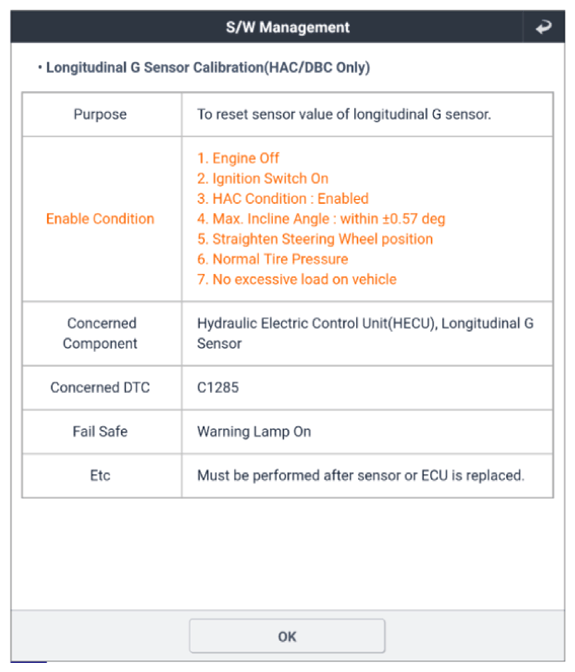

G13666555Courtesy of KIA MOTORS AMERICA, INC.

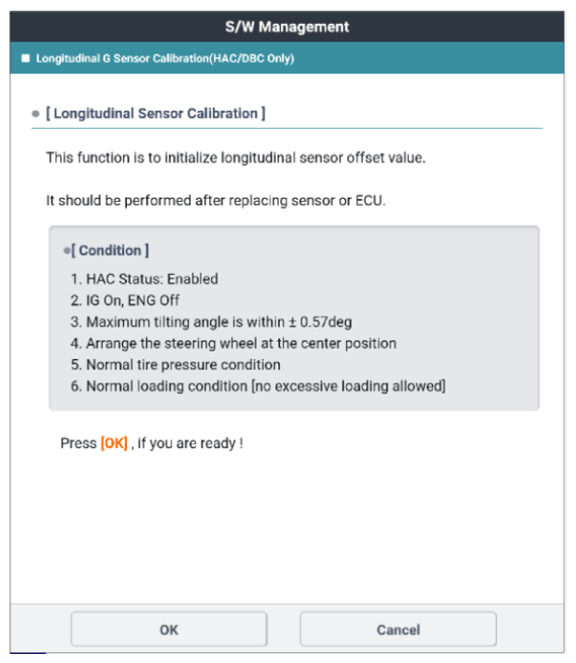

G13666556Courtesy of KIA MOTORS AMERICA, INC.
G13666557Courtesy of KIA MOTORS AMERICA, INC.
